2-Post Lift vs 4-Post Lift: Which Is Right for Your Shop?

2-Post Lift vs 4-Post Lift
Short answer

Choose a 2-post lift (frame-engaging car hoist) if your primary work is mechanical repair: its telescoping swing arms engage the chassis lift points so all four wheels hang free, giving technicians 360-degree access to brakes, suspension, exhaust, drivetrain and EV battery packs. Choose a 4-post lift (runway-engaging lift or alignment rack) if you need long-term vehicle storage, 4-wheel alignment, rear-heavy commercial vehicle stability, or lifting capacities from 15,000 to 35,000 lbs.

For most commercial bays and residential garages across the US and Canada, the building dictates the decision before preference does. Overhead clearfloor 2-post columns stand 140 to 152 inches tall (11 ft 8 in to 12 ft 8 in), whereas an open-top floorplate (baseplate) 2-post eliminates the top crossbar and fits ceilings as low as 110 to 114 inches (9 ft 2 in to 9 ft 6 in). A 4-post lift operates in 9 to 10 feet of ceiling height for maintenance—or 12+ feet for car stacking—but demands 22 to 28 feet of bay depth once approach ramps are included.

Never assume a 4-post lift is a "do-everything" repair rack simply because it has four columns. Because the tires rest on steel runways, every brake, rotor, hub or suspension job requires at least one air-hydraulic rolling bridge jack to lift the axles clear of the tracks. Budget for the rolling jack alongside the lift, not after installation.

Deciding between a 2-post lift vs 4-post lift comes down to one engineering reality: how the machine engages the vehicle and transfers load into your shop floor. Neither automotive lift is universally superior. They are purpose-built for opposite workflows, which is why high-volume repair facilities and fleet shops routinely run both side by side.

Your selection depends on four non-negotiable site and operational inputs: the percentage of wheel-off jobs you perform, the gross vehicle weight rating (GVWR) and center-of-gravity of the vehicles you service, your lowest overhead ceiling obstruction, and your concrete slab thickness and bay depth. Match those four inputs to the right geometry and your bay pays for itself. Mismatch them and you end up with a lift that blocks the exact components you need to reach or overloads your floor slab.

At Daytona Automotive Equipment, we have engineered and supplied commercial and residential lifts across the United States and Canada since 1999. Below is our complete technical breakdown comparing 2-post hoists and 4-post racks across undercarriage access, arm geometry, concrete PSI requirements, ANSI/ALI safety standards and installed cost. If you are also weighing mid-rise or high-rise scissor lifts, review our complete guide to the different types of car lifts first.

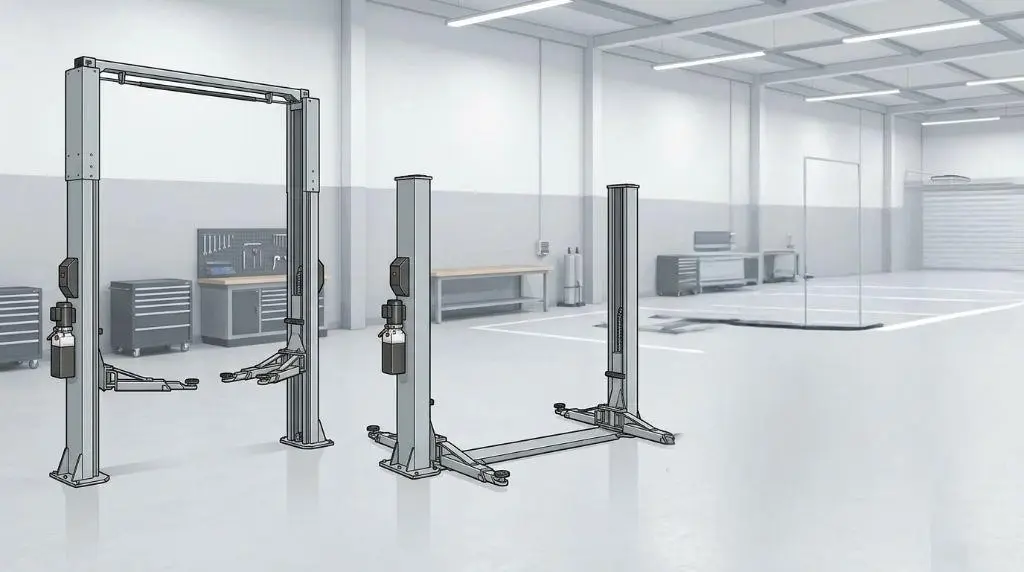

Three types of 2-post car lifts compared: overhead clearfloor, floorplate baseplate, and adjustable width column configurations
Not all 2-post lifts share the same structural envelope. Overhead (clearfloor), floorplate (baseplate), and adjustable-width configurations solve specific ceiling height and bay width constraints in existing North American shop buildings.

Key takeaways

  • Frame-engaging vs. runway-engaging mechanics. A 2-post lift raises the vehicle by its frame or unibody pinch welds so all four wheels hang free; a 4-post lift raises the vehicle by its tires on two parallel steel runways.
  • Wheel-off repair favours a 2-post hoist. Brake service, suspension overhauls, subframe drops, exhaust work and drivetrain pulls move significantly faster with no runways obstructing the undercarriage.
  • Storage, alignment and rear-heavy trucks favour a 4-post rack. Because weight rests on the tires at natural ride height, vehicles can sit stored for months without suspension bushing fatigue, and technicians can perform loaded 4-wheel alignments.
  • Ceiling height governs 2-post selection. Overhead clearfloor columns stand 140 to 152 inches tall; open-top floorplate models like the Daytona LTPF9 (110 in) and LTPF12 (114 in) fit under 9.5- to 10-foot ceilings.
  • Bay depth governs 4-post selection. Allow 22 to 28 feet of total longitudinal depth to accommodate the runway footprint, approach ramps, and drive-on clearance.
  • Capacity diverges above 15,000 lbs. Daytona 2-post lifts span 6,000 to 15,000 lbs; Daytona 4-post parking and alignment lifts span 9,000 to 35,000 lbs for dually pickups, ambulances, and Class 5–7 fleet trucks.
  • 4-post wheel-off work requires rolling jacks. A 4-post lift is ideal for every shop task except rapid wheel-off brake and tire service—unless outfitted with matched air-hydraulic rolling bridge jacks (such as the Daytona RAJ5 through RAJ12 series).
  • Concrete and anchoring rules differ sharply. Every 2-post lift sustains cantilevered overturning moments and must be bolted into 4.0 to 6.0 inches of 3,000–4,000 PSI concrete; 4-post parking lifts place pure vertical compression on four baseplates and can operate freestanding or on caster kits.

What is the difference between a 2-post lift and a 4-post lift?

A 2-post lift is a frame-engaging hoist that suspends the vehicle by its chassis pickup points with the wheels hanging free, whereas a 4-post lift is a runway-engaging platform that raises the vehicle by its tires. Every operational difference between a 2-post and 4-post rack stems directly from how each machine supports the load.

How does a 2-post lift work? A 2-post automotive lift—commonly called a 2-post car hoist in Canada and northern US states—uses two heavy-duty steel columns anchored directly to the concrete slab. Inside the columns, dual direct-drive hydraulic cylinders (or chain-over-roller cylinders) raise two carriages equipped with four telescoping swing arms. The technician positions adapter pads under the OEM-specified frame rails, unibody pinch welds, or jacking pucks. Synchronized by braided aircraft-grade steel equalizer cables and locked mechanically at regular intervals, the carriages lift the chassis completely clear of the floor.

How does a 4-post lift work? A 4-post car lift—often called a 4-post rack in alignment and fleet shops—connects four vertical columns with two crossbeams and two full-length steel runways. Typically, a single large-bore hydraulic cylinder mounted underneath the power-side runway pulls four high-tensile aircraft cables routed over heavy-duty sheaves inside the crossbeams to raise all four corners simultaneously. As the platform rises, spring-loaded or air-actuated mechanical ladder locks click into steel lock ladders inside every column. Because you drive straight onto the tracks, the vehicle's suspension stays compressed at normal curb weight.

That mechanical distinction creates an immediate trade-off in shop workflow. On a 2-post frame-engaging lift, spotting the vehicle and setting the four swing arms to match the vehicle's center of gravity takes 60 to 90 seconds on every load, but rewards you with total underbody access. On a 4-post runway lift, loading takes 15 seconds, but the twin 19- to 25.6-inch-wide runways remain permanently underneath the rocker panels and tires.

How do 2-post hoist and 4-post lift specifications compare side by side?

A 2-post lift wins on wheel-off undercarriage access, compact bay footprint, and lower upfront equipment cost; a 4-post lift wins on vehicle stacking, 4-wheel alignment, center-of-gravity stability, and heavy-duty capacity up to 35,000 lbs. Use the engineering comparison matrix below to benchmark both designs against your bay and service mix.

Figures represent engineering planning ranges across Daytona's North American lineup. Always confirm exact footprint, slab depth, and electrical specs in your model's installation manual.
Specification / Factor 2-Post Car Lift (Hoist) 4-Post Car Lift (Runway Rack)
Lifting mechanism Frame-engaging: 4 telescoping swing arms contact OEM frame or pinch-weld lift points Runway-engaging: vehicle drives onto two steel tracks; hydraulic cylinder + 4 lifting cables raise platform
Undercarriage & wheel access 100% unobstructed: wheels hang free; full access to brakes, hubs, suspension and subframe Center-channel access: runways cover tires and outer frame rails; requires rolling bridge jack for wheel-off work
Primary applications General mechanical repair, brake/suspension service, drivetrain swaps, EV battery drops Double-car parking/storage, 4-wheel alignment, quick-lube, heavy fleet and dually service
Suspension state when raised Unloaded (full droop): coil springs, struts and control arm bushings hang extended Loaded (curb ride height): weight rests naturally on tires and compressed suspension
Daytona capacity range 6,000 lbs (LTPP6 stacker) and 9,000 to 15,000 lbs (repair models) 9,000 to 10,000 lbs (parking) and 12,000 to 35,000 lbs (commercial alignment)
Column height / ceiling needed 140–152 in for overhead clearfloor; 110–114 in for open-top floorplate (baseplate) 9–10 ft for single-car service; 11.5–13+ ft for double-stacking vehicles
Bay floor footprint Compact: ~110–152 in total width; 16–18 ft bay depth Large: ~110–146 in width; 22–28 ft total bay depth including approach ramps
Concrete slab requirements Mandatory anchoring: 4.0–4.25 in (3,000 PSI) for 9K–10K; 5.0–6.0 in (3,500–4,000 PSI) for 12K–15K Freestanding option on 9K–10K parking models (4 in at 3,000 PSI); anchored 4–6 in slab for 12K–35K alignment racks
Electrical service 220V–240V single-phase, 20A–30A breaker (110V on LTPP6 parking model) 110V–120V (15A–20A) on 9K–10K parking lifts; 220V–240V single-phase on 12K–35K alignment lifts
2026 equipment price range ~$2,000 to $6,000 USD (plus concrete anchoring and 240V wiring) ~$3,000 to $10,000+ USD (plus optional rolling bridge jacks at $1,200–$3,500+ each)

What are the pros and cons of a 4-post lift vs a 2-post lift?

The core advantage of a 4-post lift over a 2-post lift is drive-on stability without frame-spotting errors or slab cantilever stress; its core disadvantage is restricted wheel and brake access without secondary rolling jacks. Reviewing the pros and cons side by side clarifies why certain jobs strictly belong on one platform over the other.

4-Post Lift Advantages & Limitations

  • Pro — Zero frame-spotting risk: Technicians drive directly onto the runways without kneeling to locate rusted pinch welds, composite EV underbody shields, or aftermarket running boards.
  • Pro — Handles severe axle weight bias: Rear-heavy commercial vehicles (such as utility bodies, box trucks, and ambulances) remain stable across four columns instead of tipping backward off a 2-post center of gravity.
  • Pro — No suspension droop during storage: Vehicles sit on their tires for winter storage or dealership staging without stretching coil springs or tearing rubber control-arm bushings.
  • Pro — Portable and 120V friendly (parking models): Residential 9,000 and 10,000 lb parking lifts can run on standard 110V–120V power and roll across a garage floor on optional caster kits without drilling anchor bolts.
  • Con — Runways block wheel-off service: Four-post lifts are ideal for all shop tasks except direct wheel, brake, rotor, and suspension removal unless you purchase and position one or two rolling bridge jacks between the tracks.
  • Con — Consumes an entire bay's length: Fixed steel runways and 36- to 48-inch approach ramps occupy 18 to 24+ linear feet of floor space even when lowered.

2-Post Lift Advantages & Limitations

  • Pro — Immediate wheel-off access: As soon as the lift rises six inches, all four tires are off the floor for rapid brake jobs, tire rotations, strut replacements, and axle service.
  • Pro — Wide-open center bay: With no horizontal runways under the rocker panels, technicians can roll transmission jacks, engine hoists, oil drains, and EV battery lift tables anywhere beneath the chassis.
  • Pro — Minimal floor footprint: When no vehicle is in the bay, swing arms fold back against the two columns, leaving the shop floor open.
  • Con — Strict concrete and anchoring demands: Because two columns resist massive inward bending (overturning) forces, every 2-post lift requires verified slab depth, compressive PSI, and torqued wedge anchors.
  • Con — Operator spotting discipline required: Every vehicle must be aligned with its center of gravity between the posts and lifted strictly at OEM-approved frame points—never used for multi-month vehicle storage.

When should you choose a 2-post lift?

Choose a 2-post lift if mechanical repair, maintenance, and wheel-off service represent more than 60% of your bay hours. Across North American independent repair shops, dealership service departments, and serious DIY garages, the 2-post hoist remains the undisputed daily workhorse.

Unobstructed undercarriage and wheel-off access

When a vehicle sits on a 2-post lift, nothing rests beneath the chassis except four low-profile swing arms and their frame contact pads. A mechanic can walk or roll a tool creeper from bumper to bumper without ducking around wide steel runways. That open architecture is indispensable when dropping front subframes, pulling transmissions, replacing catalytic converters, or lowering high-voltage electric vehicle (EV) battery packs that span the entire belly pan.

For wheel-off revenue work—brake pads and rotors, wheel bearings, ball joints, tie rods, and seasonal tire swaps—a 2-post lift eliminates redundant setup steps. On a 4-post rack, a technician must raise the runway platform, slide a rolling bridge jack along the utility rail, extend the jack arms to the axle or frame points, and pump the vehicle a second time just to pull the wheels. Across 15 brake and suspension jobs a week, a 2-post hoist saves hours of cumulative labor.

Overhead clearfloor, floorplate (baseplate), or adjustable width?

Most generic comparison articles treat all 2-post lifts as identical. In reality, column architecture and arm geometry determine whether a lift will physically fit your building and clear your vehicle doors.

The three Daytona 2-post structural configurations

1. Overhead Clearfloor (Closed-Top): Hydraulic hoses and equalizer cables route through a padded overhead crossbar at the top of the columns (incorporating an automatic padded shut-off bar that stops the lift if a tall roof contacts it). Because nothing crosses the floor between the posts, technicians can roll heavy transmission jacks, oil caddies, and battery tables straight through the bay without bumping over a floor threshold. Requires 12 ft+ ceilings. Flagship Daytona models: the ALI-certified 10,000 lb BR10-2OH-33 overhead 2-post lift and the heavy-duty 15,000 lb LTPO15 2-post truck lift.

2. Floorplate / Baseplate (Open-Top): Equalizer cables and hydraulic lines pass through a heavy steel diamond-plate channel bolted flat across the floor between the columns (roughly 1.5 to 2 inches high). With no overhead crossbar connecting the tops of the posts, column height drops dramatically—and high-roof Sprinter vans, utility trucks with ladder racks, and lifted pickups can rise as high as your building rafters allow. Ideal for ceilings under 10 to 11 feet. Daytona models: the 9,000 lb LTPF9 2-post floorplate lift (110 in column height) and the 12,000 lb LTPF12 baseplate lift (114 in column height).

3. Adjustable-Width Overhead: Engineered with three selectable column-width mounting positions so installers can narrow the footprint for a tight single bay or widen it for full-size crew-cab trucks. The 10,000 lb LTPA10 adjustable 2-post lift sets at 88.6", 94.5", or 100.4" inside width; the 12,000 lb LTPA12 sets at 107", 113", or 119".

Symmetric vs. asymmetric arm geometry and 3-stage reach

Beyond column height, pay close attention to arm geometry. A symmetric 2-post lift mounts the columns directly facing each other and uses four equal-length swing arms, centering the vehicle 50/50 between the posts. Symmetric geometry is mandatory for heavy crew-cab pickups, long-wheelbase vans, and commercial fleet trucks (`LTPO15`, `LTPF12`, `LTPA12`) where the center of gravity sits near the middle of the chassis. An asymmetric 2-post lift rotates the columns 30 degrees or uses shorter front arms and longer rear arms to position the vehicle 30/70 rearward—allowing the technician to swing the driver's door fully open behind the column without denting the door skin.

To give shops both capabilities in one bay, Daytona's ALI-certified BR10-2OH-33 utilizes **3-stage front arms** paired with 2-stage rear arms and dual direct-drive cylinders, allowing technicians to spot unibody passenger cars asymmetrically or heavy trucks symmetrically without changing bays. You can compare all Daytona 2-post lifts for sale here, or read our detailed 2-post car lift buyer's guide.

When should you choose a 4-post lift?

Choose a 4-post lift if your primary goal is doubling vehicle parking capacity, performing 4-wheel alignment service, or safely lifting heavy-duty commercial vehicles up to 35,000 lbs. Where a 2-post lift runs into physical and structural limits, a 4-post runway rack excels.

Long-term vehicle storage, car stacking, and multi-car parking

If you are a collector stacking a summer sports car over a daily driver in a residential garage, or an auto dealership staging inventory indoors, a 4-post parking lift is the gold standard. Never store a vehicle on a 2-post frame lift for weeks or months: hanging the unsprung weight of the wheels, brakes, and axles at full rebound droop stretches suspension bushings, hyper-extends struts, and can distort unibody frames over time.

4-post parking lift storing two vehicles in a residential home garage to double parking capacity
A 4-post parking lift supports the upper vehicle on its tires at natural curb ride height. When calculating stacking height, add both vehicle heights plus 5 inches of runway thickness and 4 inches of safety lock clearance below your lowest overhead garage door track.

On a 4-post lift, the vehicle sits on its tires with its suspension normally loaded, and nylon drip trays fit between the runways to protect the lower vehicle from fluids. Daytona's residential and commercial 4-post storage lineup includes the standard 9,000 lb LFPP9 4-post parking lift (70.9 inches of under-runway clearance), the 10,000 lb LFPP10, and the extra-long, extra-tall LFPP10-XLT offering 85 inches of vertical clearance for SUVs and pickup trucks.

What about multi-car 4-post lifts vs. stackable 2-post parking lifts?

Commercial valets, condominium garages, and exotic car storage vaults often search for multi-bay or quad 4-post parking lifts vs. compact car stackers. When outfitting multi-vehicle rows, Daytona's 4-post parking lifts can be installed side by side across multiple bays for independent drive-on storage. If floor width is severely restricted, Daytona also manufactures the 6,000 lb LTPP6 2-post stackable parking lift—a full-platform parking lift supported by two columns that uses a shared-post (common-column) modular design on 110V power, allowing you to chain 2, 3, or 4+ bays side by side in a fraction of the width of standalone 4-post units.

Precision 4-wheel alignment racks

Four-wheel caster, camber, and toe alignment can only be measured and adjusted when the vehicle's suspension is loaded at normal ride height on level runways equipped with front radius turnplates and rear full-floating slip plates. You cannot perform a wheel alignment on a standard 2-post frame-engaging lift because the suspension hangs unloaded in mid-air.

Daytona's dedicated 4-post wheel alignment lifts are engineered with precision-leveled lock ladders and integrated slip-plate/turntable cutouts compatible with 3D camera and CCD alignment systems. The lineup scales from the 12,000 lb LFPA12 alignment lift and the 14,000 lb LFPA14 (featuring 25.6-inch ultra-wide runways to accommodate dual-rear-wheel dually trucks without overhang) up to the commercial 24,000 lb LFPA24 and 35,000 lb LFPA35 heavy-duty alignment rack.

Heavy-duty trucks, ambulances, and rear-heavy center-of-gravity loads

Consider a common commercial shop scenario: a customer brings in a Type I or Type III ambulance, a fully outfitted utility service body truck, or a heavy box van for an oil change and undercarriage inspection. When your technician attempts to raise it on a standard 2-post frame-engaging lift, the front wheels clear the floor first by a wide margin while the rear tires remain planted. Is that 2-post lift suited for the job? No—and continuing to raise it risks a catastrophic tip-off.

Ambulances, armored trucks, motorhomes, and loaded crane/service bodies carry an extreme rear-axle weight bias alongside heavy frame flex. Even if the vehicle's total weight falls near a 2-post lift's rated capacity, the center of gravity shifts behind the column centerline, overloading the rear swing arms and flexing the carriage. A heavy-duty 4-post runway lift (14,000 to 35,000 lbs) solves this completely: the vehicle's wheelbase stays supported across two full-length steel tracks anchored by four corner columns, eliminating cantilever arm deflection and center-of-gravity tipping hazards. Browse all Daytona 4-post lifts here.

Is a 4-post lift safer than a 2-post lift? (ANSI/ALI & OSHA compliance)

Both lift designs are completely safe when engineered to North American standards and operated properly, but a 4-post lift provides wider passive stability while a 2-post lift demands strict operator training on lift-point spotting and concrete anchoring. The two architectures do not differ in build quality; they differ in their failure modes when misused.

North American Lift Safety Standards: ANSI/ALI ALCTV & ALOIM

As reported by Underhood Service, citing U.S. Consumer Product Safety Commission (CPSC) data, roughly 15,000 workers receive hospital treatment annually for injuries involving automotive lifts, jacks, and jack stands. In the United States (enforced by OSHA under the General Duty Clause) and across Canadian provincial Occupational Health & Safety (OH&S) ministries, commercial shop compliance revolves around two standards maintained by the Automotive Lift Institute (ALI):

  • ANSI/ALI ALCTV (Construction, Testing, and Validation): The third-party structural and electrical design standard required for a lift to earn the gold ALI Certified label. Daytona's BR10-2OH-33 is our ALI-certified 10,000 lb 2-post overhead model.
  • ANSI/ALI ALOIM (Operation, Inspection, and Maintenance): The mandatory North American workplace standard governing operator training, daily lock inspections, and annual qualified lift inspections across a lift's service life (ANSI/ALI ALOIM current edition).

Why do beginners feel safer around a 4-post lift? A 4-post platform distributes load across four vertical columns and encloses the Lifting Cables inside the crossbeams. Furthermore, Daytona 4-post lifts incorporate both a primary mechanical ladder-lock system (engaging every 3.5 inches on heavy models like the LFPA24) and a secondary slack-cable safety lock that immediately latches onto the column if a lifting cable ever loses tension.

On a 2-post hoist, safety is governed by two factors: **anchor bolt integrity** and **center-of-gravity spotting**. After raising a vehicle 6 inches off the ground on a 2-post lift, a technician must pause, visually verify pad-to-frame contact, and perform a firm "bumper jounce test" before raising the vehicle to full standing height. Every Daytona 2-post lift—whether ALI-certified like the BR10-2OH-33 or non-certified standard models—includes automatic mechanical safety locks in both columns, positive automatic arm restraints that lock arm rotation as the carriages rise, UHMW polymer slide blocks, and overhead hydraulic velocity fuses / height-limit switches.

How much space, ceiling height, and concrete thickness do you need?

A 2-post lift is primarily constrained by ceiling height and concrete slab thickness, whereas a 4-post lift is primarily constrained by bay depth and approach ramp clearance. Before requesting a quote, measure your bay against the engineering parameters below.

Site planning matrix for North American residential garages and commercial bays. Always verify exact dimensions against your specific Daytona installation manual prior to pouring concrete or wiring.
Site Requirement 2-Post Lift Specifications 4-Post Lift Specifications
Minimum ceiling height 140–152 in (11 ft 8 in – 12 ft 8 in) for overhead; 110 in (LTPF9) to 114 in (LTPF12) for open-top floorplate 9–10 ft for single-car service; 11.5–13+ ft for double-stacking (Car 1 height + Car 2 height + 9 in)
Bay width & wall clearance 88.6–119 in inside columns (132–155 in overall width); keep column baseplates 24–36 in from side walls 105–146 in overall width across column baseplates; allow 24 in walkway clearance on power-unit side
Total bay depth needed 16 to 20 ft (at least 10–12 ft in front of and behind the column centerline) 22 to 28+ ft (15–21 ft runway length + 3–4 ft approach ramps + drive-on turning buffer)
Concrete slab (9K–10K models) Min 4.0 to 4.25 in depth at 3,000+ PSI; 3/4" x 5.5" wedge anchors torqued to 85–110 ft-lbs; 6+ in from seams Min 4.0 in depth at 3,000 PSI; LFPP9/LFPP10 parking lifts can stand unanchored on level slabs
Concrete slab (12K–15K+ models) Min 5.0 to 6.0 in reinforced concrete at 3,500–4,000 PSI (LTPF12, LTPA12, LTPO15); 28-day full cure Min 4.5 to 6.0+ in at 3,500+ PSI anchored for 12,000 to 35,000 lb commercial alignment racks
Electrical supply 220V–240V, 60Hz, 1-Phase (20A–30A breaker); 110V on LTPP6 parking model 110V–120V, 15A–20A on 9K–10K parking lifts; 220V–240V, 1-Phase on 12K–35K alignment lifts (plus shop air for locks/jacks)

Concrete slab thickness & anchoring: why 2-post and 4-post requirements differ

Floor concrete is the number-one safety gate in lift installation. Because a 2-post lift supports the entire vehicle across just two baseplates, any slight forward or rearward center-of-gravity offset creates an inward bending (overturning) moment that pulls upward on the outer anchor bolts. For 9,000 lb and 10,000 lb 2-post lifts, you need a minimum of 4.0 to 4.25 inches of solid, uncracked concrete rated at 3,000 PSI or higher, anchored with 3/4-inch by 5.5-inch heavy-duty wedge anchors set at least 6 inches away from any control joint, expansion seam, or slab crack. Stepping up to a 12,000 lb or 15,000 lb 2-post lift (`LTPF12`, `LTPA12`, `LTPO15`) requires 5.0 to 6.0 inches of reinforced concrete at 3,500 to 4,000 PSI and a mandatory 28-day cure on any newly poured pad.

By contrast, a 4-post lift distributes vehicle dead weight purely in vertical compression across four separate corner baseplates with virtually zero overturning torque. That is why 9,000 and 10,000 lb 4-post parking lifts can operate freestanding on a level 4-inch, 3,000 PSI garage floor. Before drilling a single test hole, review our complete engineering breakdown on how thick concrete needs to be for a 2-post lift by capacity and our step-by-step 2-post lift installation and shimming guide.

2-post lift vs 4-post lift for a home garage

Residential buyers comparing a 2-post lift vs 4-post lift for a home garage face three constraints that commercial bays rarely have: 8- to 10-foot ceilings obstructed by garage door openers, standard 20- to 22-foot garage depth, and residential concrete poured over compacted gravel with expansion seams cut down the center of each bay.

  • When a 4-post wins in a home garage: If your residential slab is post-tensioned (stamped "Post-Tensioned Cable — Do Not Cut or Core"), thin near the seams, or rented, an unanchored 110V–120V 4-post parking lift (LFPP9 or LFPP10) plugs into a standard wall receptacle and stacks two cars without core-drilling concrete. Just convert your overhead garage door to high-lift tracks with a wall-mounted jackshaft opener so the door hugs the ceiling.
  • When a 2-post wins in a home garage: If your garage is only 20 feet deep, a 4-post lift with approach ramps will prevent the garage door from closing or eat up your workbench area. Provided your slab verifies at 4+ inches of 3,000 PSI concrete and you run a 240V 30A circuit, an open-top floorplate 2-post lift like the 110-inch LTPF9 fits under a 9 ft 4 in ceiling while leaving the bay open when parked. Working with an even lower ceiling? Read our guide to fitting a 2-post car lift for an 8-foot ceiling.

Unsure whether your shop ceiling, bay depth, or concrete slab will support the model you want? Send our technical team your ceiling height, bay dimensions, and slab specs—we will verify exact model fitment before you order.

Check My Bay Dimensions

How much does a 2-post lift cost compared with a 4-post lift?

A 2-post lift costs roughly 25% to 45% less upfront than a comparable-capacity 4-post lift because it uses two columns instead of four and eliminates heavy steel runways, ramps, and crossbeams. However, total installed cost depends heavily on electrical wiring, concrete work, and rolling bridge jacks.

Across the North American market in 2026, commercial and residential 2-post lifts in the 9,000 to 15,000 lb range average $2,000 to $6,000 USD, scaling from standard floorplate hoists at the entry level up to ALI-certified or 15,000 lb heavy-duty overhead models. Comparable 4-post lifts range from $3,000 to $10,000+ USD for 9,000 to 14,000 lb parking and service models, while heavy-duty 24,000 to 35,000 lb commercial 4-post alignment racks with integrated slip plates and turntables command commercial fleet pricing above that band. Treat these ranges as planning benchmarks rather than formal quotations.

Factor three hidden installation and accessory costs into your budget before deciding:

  1. Anchoring and 240V electrical installation: Every 2-post lift requires professional concrete anchoring and a dedicated 220V–240V single-phase circuit (typically $500 to $1,500+ if your bay is not pre-wired or if concrete piers must be poured). By contrast, a 120V freestanding 4-post parking lift (`LFPP9` or `LFPP10`) avoids concrete cutting and high-voltage electrician bills entirely.
  2. Rolling bridge jacks for 4-post wheel-off service: If you buy a 4-post lift and want to perform brake, tire, or suspension work, you must add at least one air-hydraulic rolling jack. Daytona's rolling jacks—spanning the 5,000 lb RAJ5 and 6,000 lb RAJ6 for 9K/10K parking lifts, the 8,000 lb RAJ8 for 12K/14K alignment racks, and the 12,000 lb RAJ12 for the LFPA24—ride directly on internal runway rails and require shop compressed air. Always match the Daytona rolling jack model to your exact Daytona lift runway width.
  3. Column height extension kits: For shops with high ceilings servicing tall commercial vans, 2-foot column extension kits are available for the `LTPA10`, `LTPA12`, `LTPO15`, and `BR10-2OH-33` (note that the 15,000 lb `LTPO15` ships standard with its 2 ft extension kit and must be installed with it).

Because freight, local installation, and accessory packages vary across states and provinces, Daytona operates on direct quote pricing. Request a direct quote, find a local car lift installer and distributor near you, or download the full Daytona product brochure. Commercial equipment financing is available across the United States via NewLane Finance and across Canada via Active Growth Financial—view our automotive lift financing options.

Which lift fits your shop or garage?

Select every operational and building condition below that applies to your bay—whichever column tallies the higher score is the right architecture for your workflow.

Quick-pick lift selector

Check every box that applies to your shop or garage. Your recommendation updates automatically below.

Points toward a 2-post lift (hoist)

Points toward a 4-post lift (runway rack)

Check the boxes above and your recommendation will appear here.

Still weighing your bay layout? Since 1999, our engineering and sales team has outfitted commercial shops, dealerships, municipal fleets, and home garages across the US and Canada. Contact Daytona for a free bay consultation and we will match the right model to your ceiling, slab, and vehicle mix.

If neither a 2-post nor a 4-post fits your footprint, Daytona also builds commercial automotive scissor lifts—including the portable 6,000 lb LMS6 mid-rise scissor lift (54 in rise, 5.5 in collapsed height) and the 7,000 lb LHS7 full-rise scissor lift (74.5 in rise)—alongside motorcycle and ATV lifts. Explore the entire catalog on our automotive lifts hub.

Not sure which lift is right for your shop?

Daytona Automotive Equipment manufactures commercial and residential 2-post, 4-post, alignment, parking, and scissor lifts from 2,200 to 35,000 lbs, plus tire changers, wheel balancers, and rolling jacks to outfit your entire facility.

  • 25+ years serving commercial shops, fleets, and garages across the US and Canada
  • Industry-backed 5-2-1 warranty — 5 years structural, 2 years power units, 1 year parts
  • ALI Certified (ANSI/ALI ALCTV) option available on the 10,000 lb BR10-2OH-33
  • Canadian owned and operated since 1999 with North American parts support
  • Actively partnering with distributors and certified lift installers across North America

Tell us your ceiling height, concrete thickness, and the vehicles you service. We will recommend the exact lift configuration and send you a custom quote.

Get a Free Quote

About the author

The Daytona Team

Written by the product engineering and technical support team at Daytona Automotive Equipment, a Canadian-owned manufacturer of automotive lifts, alignment racks, tire changers, and wheel service equipment since 1999.

  • Specialisms. 2-post hoist and 4-post rack selection, bay layout and ceiling clearance planning, concrete slab and anchor verification, alignment and multi-car parking configuration, rolling bridge jack compatibility.
  • Standards. Guidance aligned to ANSI/ALI ALCTV and ANSI/ALI ALOIM North American safety standards.
  • Reviewed by. Daytona product and technical support staff, 13 November 2026.

Daytona Automotive Equipment Inc. | Brighton, ON, Canada | Automotive lifts, tire changers and wheel service equipment since 1999.

References and sources

  1. Automotive Lift Institute. ANSI/ALI ALCTV Automotive Lift Certification Program. ALI, accessed November 2026.
  2. Automotive Lift Institute. ANSI/ALI ALOIM — Safety Requirements for Operation, Inspection and Maintenance. ALI, current edition.
  3. Underhood Service. New OSHA Program Targets Fatalities, Injuries Associated With Automotive Lifts, citing U.S. Consumer Product Safety Commission injury data. Underhood Service.

Figures in this article are representative engineering ranges for planning and are not formal quotations. Confirm all site requirements against the installation manual for your specific lift model before purchase, concrete work, or installation.
