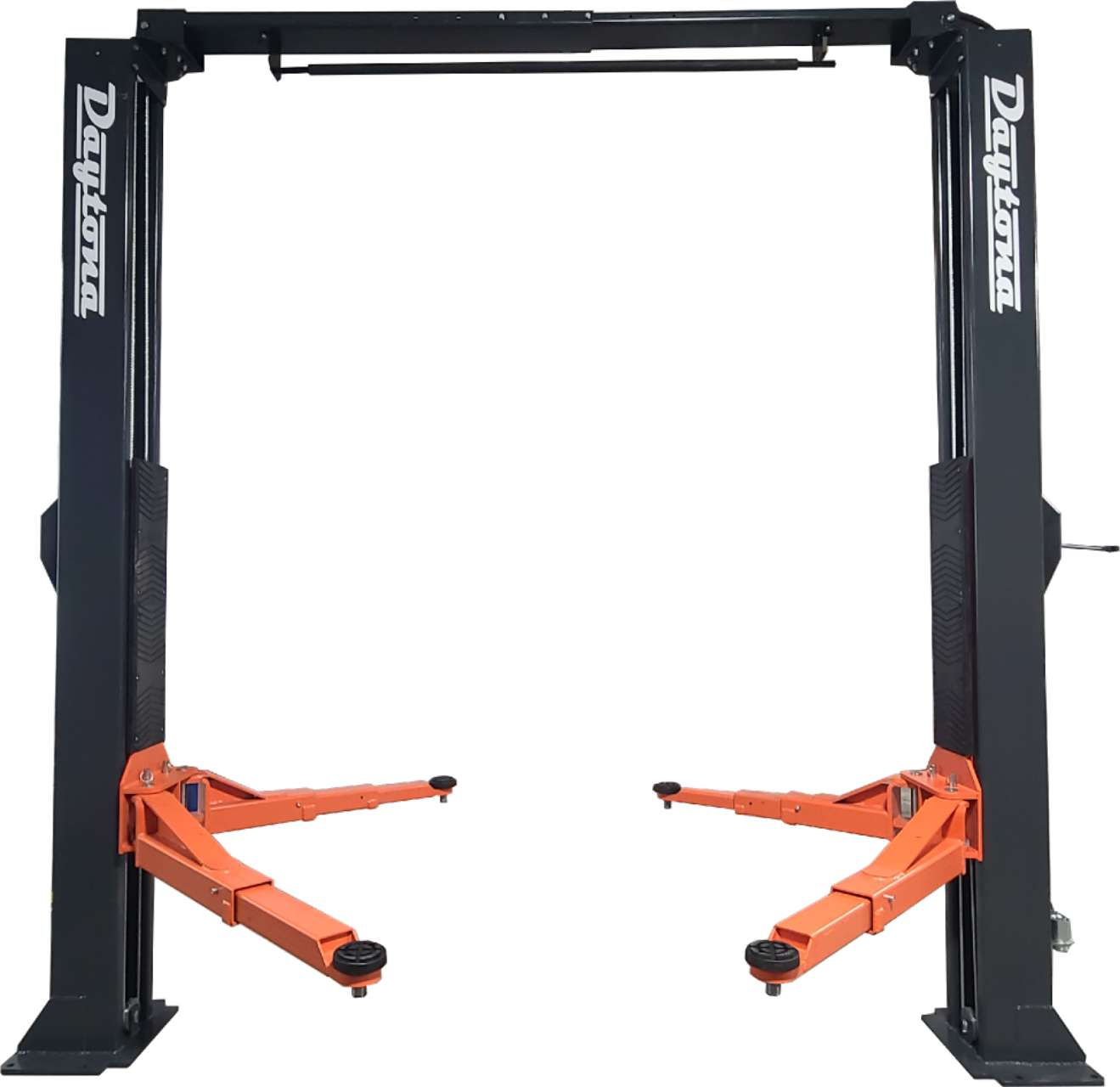

Note: Product may vary slightly from image shown.
Daytona LTPA10 10,000 LBS 2-Post Adjustable Lift
Adjustable-Width 2-Post Lift
10,000 lbs Capacity • 3 Width Settings • Dual Direct Drive
The Daytona LTPA10 is a premium, versatile 2-post automotive lift with a dual direct-drive cylinder system, three adjustable width settings, and a single-point automatic safety lock — delivering reliable, safe performance for professional shops and serious enthusiasts.
- Automatic safety locks with single-point lock release
- Dual direct-drive cylinders with cable equalization
- Three adjustable width settings with three-stage front arms
Please note: optional 2 ft height extension kit is sold separately.
Partnership Opportunity
We are actively looking for distributors and installers in Canada and the USA. Contact us today for exclusive details.
Daytona LTPA10 Features
- 10,000 lbs lifting capacity with arms fully extended.
- Automatic safety locks with single-point release.
- High-polymer polyethylene wear-resistant slide blocks.
- Dual direct-drive cylinders with cable equalization.
- Three-stage front arms with screw-up pads.
- Height limit switch and rubber door guards.
- Durable powder-coat finish for long service life.
- Truck adapters included standard.
Daytona LTPA10 Specifications
Power Requirements
240V / 3HP / 13A / 1PH / 60Hz
3 Width Settings
- Narrow: 88.6" drive-through
- Medium: 94.5" drive-through
- Wide: 100.4" drive-through
Dimensions, colours and items are subject to change without prior notice due to our continuous improvement program.
| Specification | Measurement |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Overall Height (to top of post) | 141.6" (excl. optional 2' extension) |
| Outer Width (post base outsides) | 126.8" / 132.7" / 138.6" |
| Outer Width (posts outsides) | 118.9" / 124.8" / 130.7" |
| Inner Width Between Posts | 100.8" / 106.7" / 112.6" |
| Drive-Through Clearance | 88.6" / 94.5" / 100.4" |
| Overhead Clearance (under top bar) | 134.2" |
| Clearance Under Arm at Full Height | 70.9" |
| Min. Arm Clearance (down position) | 4.5" |
| Control Box / Switch Height | 67.9" |
| Post Base Width | 15.7" |
| Post Width | 9.1" |
| Shipping Dimensions: Lift | 145" x 30" x 26" / 1,700 lbs |
| Shipping Dimensions: Pump | 31" x 12" x 11" / 60 lbs |
| Shipping Dimensions: Optional Height Kit | 30" x 15" x 11" / 165 lbs |
Daytona LTPA10 Manuals and Downloads
Versatile Performance for Any Workspace
Whether you are outfitting a high-volume commercial dealership, an independent auto repair shop, or a serious home restoration bay, the Daytona LTPA10 is the perfect adjustable-width 2-post automotive lift for the rigorous demands of any environment. Need more lifting power? Compare the higher-capacity LTPA12 12,000 lb 2-post adjustable lift, or browse the full range on our 2-post lifts page.
Commercial-Grade Power
Engineered for heavy daily use, the 10,000 lb capacity handles everything from compact commuters to fleet trucks and SUVs.
Adaptable Footprint
Three adjustable width settings let the LTPA10 fit your floor plan, ideal for tight bays or expansive layouts.
Uncompromising Safety
The automatic single-point lock and dual direct-drive cylinders provide peace of mind on every lift.
Daytona LTPA10 Frequently Asked Questions
What is the minimum ceiling height required for the LTPA10?
The standard minimum ceiling height is 144 inches (12 feet). If you choose to install the optional 2 ft height extension kit, the required ceiling height increases to 168 inches (14 feet).
Does this lift come with truck adapters?
Yes, truck adapters are included as standard equipment with every LTPA10 2-post lift so you can safely lift larger vehicles immediately after installation.
What are the concrete requirements for the floor?
For safe operation, the lift must be installed on a minimum of 6 inches of 4000 PSI concrete. We suggest replacing defective concrete with a 48" x 48" x 6" pad under each post if the existing floor does not meet these specs.
Is the 2 ft height extension kit included?
No, the 2 ft height extension kit is sold separately. It is a popular option for shops with high ceilings that need to service taller vehicles or vans.
What does "adjustable width" mean?
The LTPA10 features three distinct width settings (Narrow, Medium, and Wide). This lets you customize the drive-through clearance from 88.6" to 100.4" depending on your shop's floor space and the vehicles you service.
