Note: Product may vary slightly from image shown. Limited stock. Call for product availability.
Daytona LTPO15 15,000 LBS 2-Post Overhead Lift
Heavy-Duty Overhead Lift
15,000 lbs Capacity • Overhead Design • Height Kit Included
The Daytona LTPO15 is a heavy-duty 15,000 lb 2-post overhead lift built for larger vehicles and commercial fleets. With dual direct-drive hydraulic cylinders and automatic safety locks, it delivers maximum lifting power and stability.
Please Note: A 2 ft Height Extension Kit comes WITH this lift. The lift MUST be assembled with the height kit.
- 15,000 lbs lifting capacity maintained with arms fully extended
- Dual direct-drive hydraulic cylinders
- Three-stage front and rear arms
Partnership Opportunity
We are actively looking for distributors and installers in Canada and the USA. Contact us today for exclusive details.
Daytona LTPO15 Features
- 15,000 lbs lifting capacity with arms fully extended.
- Automatic safety locks with single-point release.
- Dual direct-drive hydraulic cylinders.
- Three-stage front and rear arms.
- Height limit switch and rubber door guards.
- Powder-coat finish for maximum durability.
Daytona LTPO15 Specifications
Power Requirements
240V / 3HP / 13A / 1PH / 60Hz

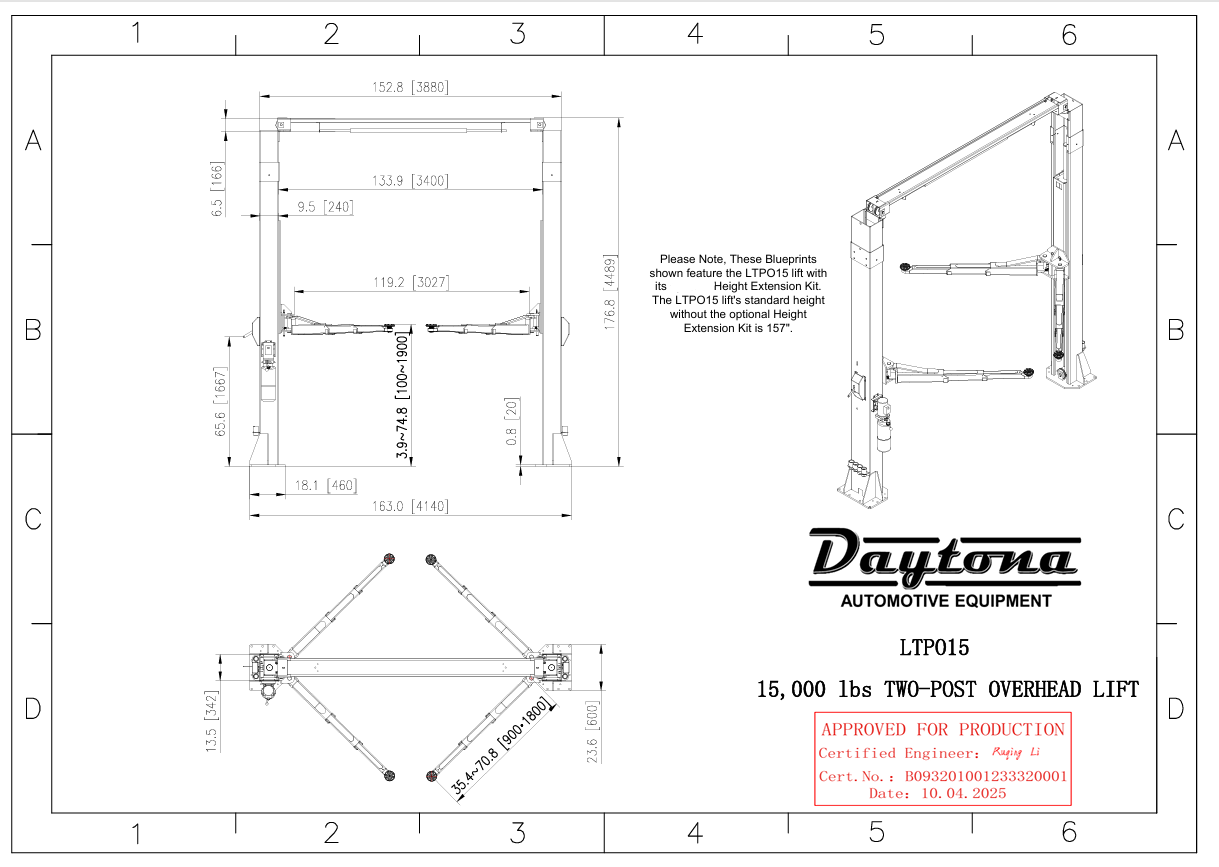

Key Dimensions
- Capacity: 15,000 lbs
- Overall Height: 176.8"
- Overall Width: 152.8"
Dimensions, colours and items are subject to change without prior notice due to our continuous improvement program.
| Specification | Measurement |
|---|---|
| Lifting Capacity | 15,000 lbs |
| Overall Height (w/ Extension) | 176.8" [4489 mm] |
| Overall Width | 152.8" [3880 mm] |
| Lifting Height | 3.9" ~ 74.8" |
| Power Supply | 240V / 3HP / 13A / 1PH / 60Hz |
| Shipping Weight (Lift) | 2,700 lbs |
Daytona LTPO15 Manuals and Downloads
Professional Heavy-Duty Fleet Maintenance
The Daytona LTPO15 is engineered for commercial shops servicing heavy-duty trucks, delivery vans, and large SUVs. The overhead design keeps the floor clear for transmission jacks and tool carts. Browse the full lineup on our 2-post lifts page, or compare the adjustable-width LTPA12 12,000 lb 2-post lift. The required height extension kit and other add-ons are listed under lift accessories.
Commercial Fleet Hubs
High 15,000 lb capacity for continuous use with heavy commercial assets and service vehicles.
Clear-Floor Efficiency
Overhead cable routing provides a completely unobstructed under-vehicle work area.
Daytona LTPO15 Frequently Asked Questions
Does the LTPO15 include a height extension kit?
Yes, the LTPO15 comes standard with a 2 ft height extension kit. The lift must be assembled with this kit installed, as the cables and hoses are sized specifically for this configuration.
What is the lifting capacity of the LTPO15?
The LTPO15 has a maximum lifting capacity of 15,000 lbs, which is maintained even when the arms are fully extended.
What are the power requirements?
The LTPO15 requires a 240V / 3HP / 13A / 1PH / 60Hz power supply.
What kind of arms does the LTPO15 feature?
It features three-stage front and rear arms, providing maximum versatility for reaching lifting points on a wide variety of heavy-duty vehicles.
Contact Us
Whether you are looking to become a distributor, an installer, or outfitting your own garage, contact us for more details and pricing.
