2 Post Lift Dimensions: Complete Size and Space Guide (2026)
You found a 2 post lift you like, the capacity is right, and then the real question hits: will it actually fit your bay? Most spec sheets throw a wall of numbers at you without telling you which ones matter for your space.
Let's fix that. A standard 2 post lift is about 132 to 142 inches wide overall (roughly 11 to 12 feet), needs a bay at least 12 feet wide by 24 feet long, and calls for 11 to 13 feet of ceiling for an overhead model, or as little as 9 feet for a floorplate model. Those are the numbers that decide whether the lift fits. Below we break down every 2 post lift dimension, show real Daytona specs, and give you a simple way to measure your own space before you buy.
The Short Answer
Most 2 post lift dimensions land in a predictable range: 132 to 142 inches overall width, about 106 to 110 inches of inside column width, 94 to 100 inches of drive-thru clearance, and a column height between 110 and 155 inches depending on design. Overhead lifts need roughly 11 to 13 feet of ceiling. Floorplate lifts fit under ceilings as low as 9 feet. Plan on a bay of at least 12 feet wide by 24 feet long.
What Are the Standard Dimensions of a 2 Post Lift?
The standard dimensions of a 2 post lift are the five measurements that decide whether it fits your bay and your vehicles: overall width, inside column width, drive-thru clearance, column height, and maximum lifting height. Get these five right and the rest is detail.
Here's the part most guides skip: each of these numbers answers a different question. Width answers "does it fit the room." Drive-thru answers "does my truck fit between the posts." Height answers "does it clear my ceiling." Mixing them up is how people end up with a lift that technically fits but can't do the job.
The Five Measurements That Matter
| Measurement | What It Means | Typical Range |
|---|---|---|
| Overall width | Outside edge of one column to the outside edge of the other. Decides if the lift fits your bay width. | 132 to 142 in (11 to 12 ft) |
| Inside column width | Clear space between the two posts. Sets how wide a vehicle can pass through. | 106 to 110 in |
| Drive-thru clearance | Usable space between the arms at tire level. The number that matters for wide trucks. | 94 to 100 in |
| Column (overall) height | Floor to the top of the post or overhead bar. Sets your ceiling requirement. | 110 to 155 in |
| Maximum lifting height | How high the arms raise the vehicle's frame off the floor. | About 72 to 78 in |
Ranges are helpful for planning, but you should always confirm the exact figures on the spec sheet for the model you choose. A one-inch difference can be the deciding factor in a tight garage.
Daytona 2 Post Lift Dimensions
We build 2 post lifts for the US and Canadian markets in several sizes. Floorplate models keep the top open for tall vehicles and low ceilings, adjustable models let you set the column width to match your work, and overhead models keep the floor clear. Here are the key height figures across the Daytona 2-post lineup.
| Model | Capacity | Type | Overall Height | Width Settings / Notes |
|---|---|---|---|---|
| LTPF9 | 9,000 lb | Floorplate | 110 in | Chain-over hydraulic, ideal for low ceilings |
| LTPF12 | 12,000 lb | Floorplate | 114 in | Dual chain drive, low-ceiling friendly |
| LTPA10 | 10,000 lb | Adjustable | Optional 2 ft height extension | Widths 88.6 / 94.5 / 100.4 in |
| LTPA12 | 12,000 lb | Adjustable | Optional 2 ft height extension | Widths 107 / 113 / 119 in |
| LTPO15 | 15,000 lb | Overhead | Includes 2 ft height extension kit | Must be assembled with the included kit |
| BR10-2OH-33 | 10,000 lb | Overhead | 3 width settings | ALI Certified, dual direct-drive |
Note on width settings: the adjustable models list the distance between the columns, not the full outside-to-outside footprint. Always check the spec sheet for the exact overall width and drive-thru clearance of the model you're considering before you finalize your bay plan.
How Wide Is a 2 Post Lift?
A 2 post lift is usually 132 to 142 inches wide overall, which is about 11 to 12 feet. That figure is measured from the outside of one column to the outside of the other, and it's the number you check against your bay width. The catch is that "width" can mean three different things, and buyers mix them up all the time.

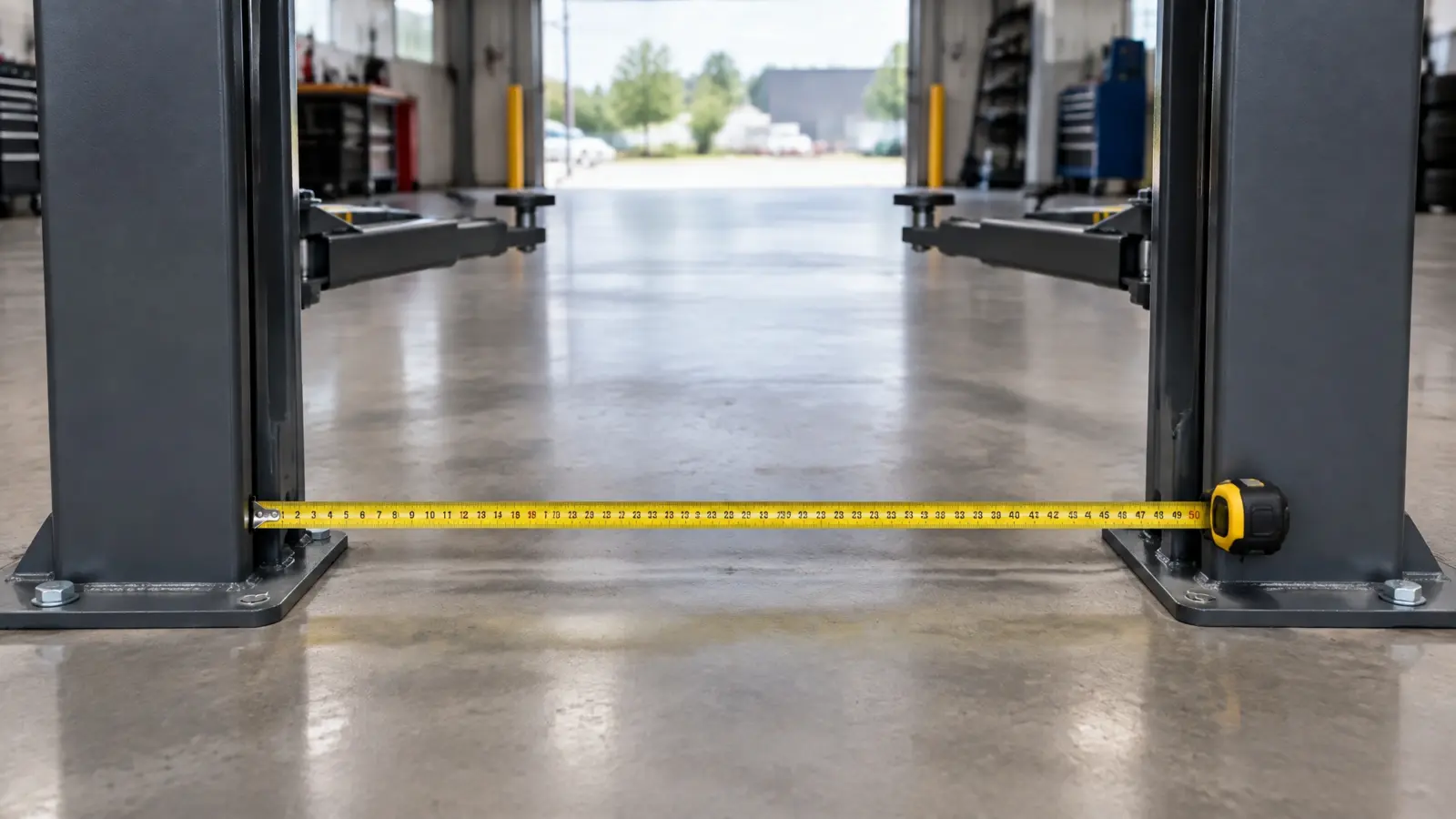

Overall Width vs Inside Column vs Drive-Thru Clearance
These three widths do three different jobs, so it pays to know which is which:
- Overall width is the full footprint across both columns. It tells you whether the lift fits the room.
- Inside column width is the clear gap between the posts, usually 106 to 110 inches. It sets the widest vehicle body that can pass between them.

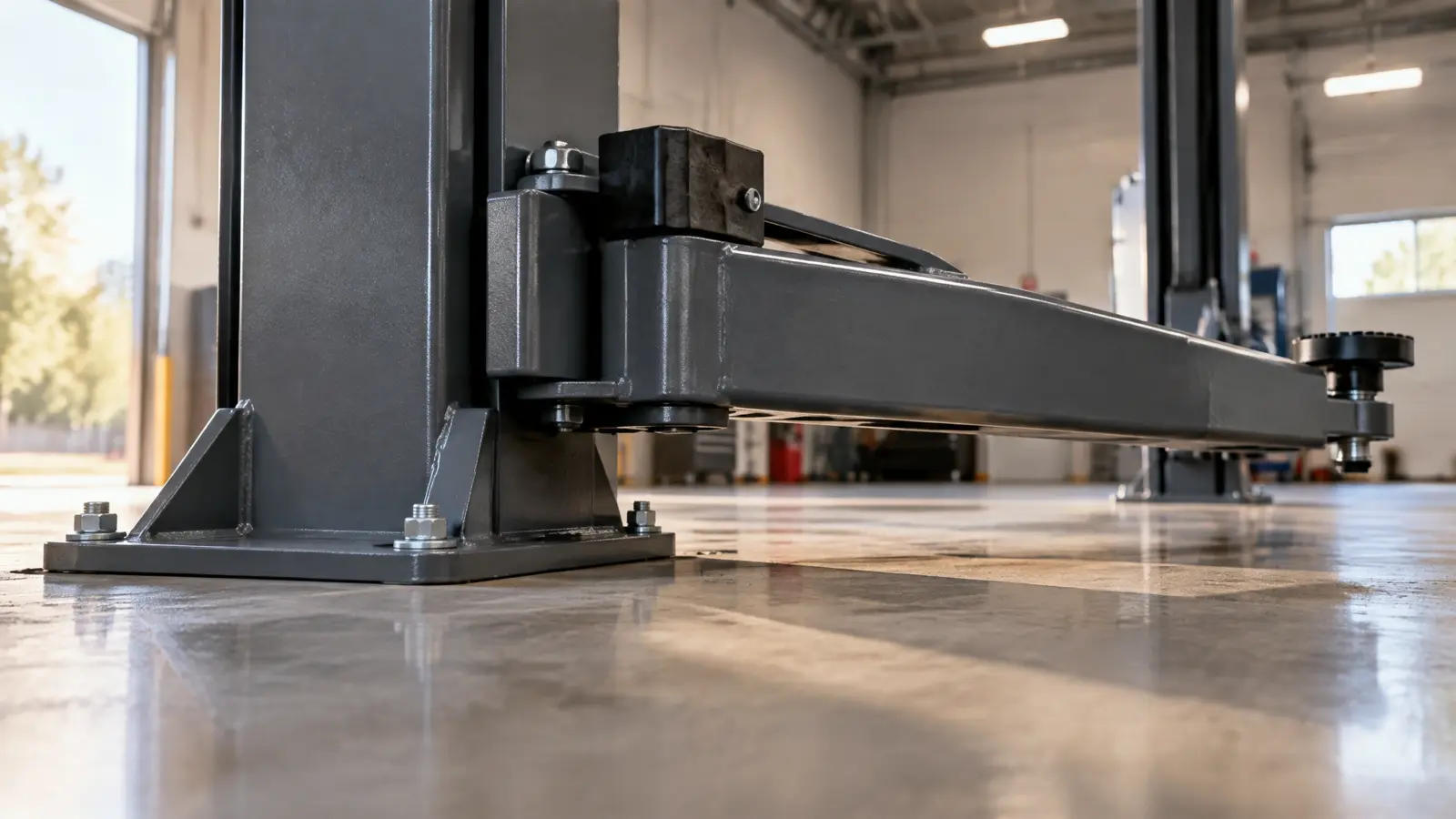

- Drive-thru clearance is the tight spot between the arms at tire height, often 94 to 100 inches. This is the real limit for full-size trucks and wide SUVs.
Here's our honest take: if you service wide vehicles, drive-thru clearance matters more than overall width. A lift can look roomy on paper and still make you fold the mirrors and inch a dually through every single time. Check that number first.
How Tall Is a 2 Post Car Lift?
A 2 post car lift stands between about 110 and 155 inches tall, or roughly 9 to 13 feet, depending on the design. Floorplate lifts are the shortest because they have no overhead bar. Overhead lifts are taller because the crossbar and safety assembly add height above the columns.
Column Height vs Lifting Height
Two "height" numbers get confused often. Column height (or overall height) is how tall the lift itself stands, and it sets your ceiling requirement. Maximum lifting height is how high the arms raise the vehicle, usually around 72 to 78 inches, and it decides whether you can stand up comfortably under a car. A tall column does not automatically mean a high lift, so read both.

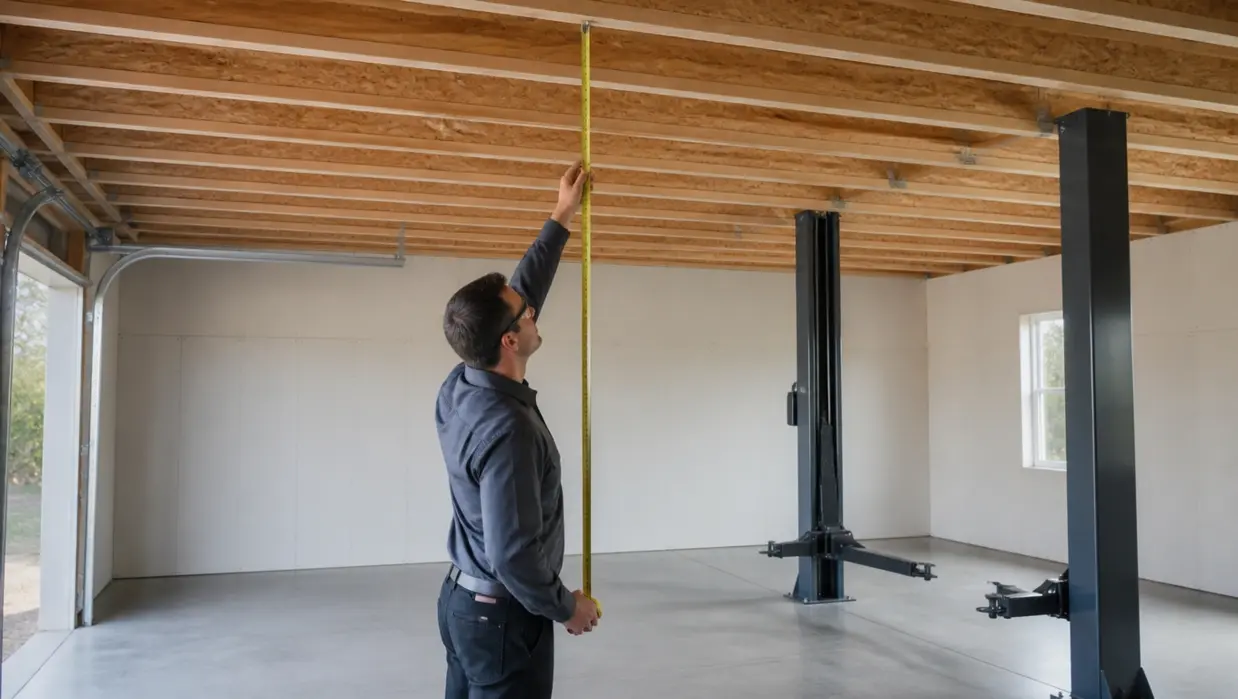

How Do You Calculate the Ceiling Height You Need?
To calculate the ceiling height you need for a 2 post lift, add three numbers together, then compare the total to your lowest overhead obstruction:
- Step 1: Find the lift's overall (column) height on the spec sheet.
- Step 2: For an overhead lift, add 10 to 12 inches for the crossbar and safety assembly. For a floorplate lift, add nothing.
- Step 3: Add at least 1 inch of safety gap (more is better).
- Step 4: Measure to the lowest point, meaning joists, ducts, or a garage door track, not the ceiling peak.
- Step 5: Confirm your total fits. A 110-inch floorplate lift needs about 9 feet 3 inches. A typical overhead lift needs about 12 to 13 feet.
Worked example: our LTPF9 floorplate lift has an overall height of 110 inches. Add a 1-inch safety gap and you need about 111 inches of clear ceiling, or roughly 9 feet 3 inches. That's why floorplate models are the go-to for a low ceiling car lift setup. If you're working with a very short ceiling, read our dedicated guide on 2 post car lift options for an 8-foot ceiling before you buy.

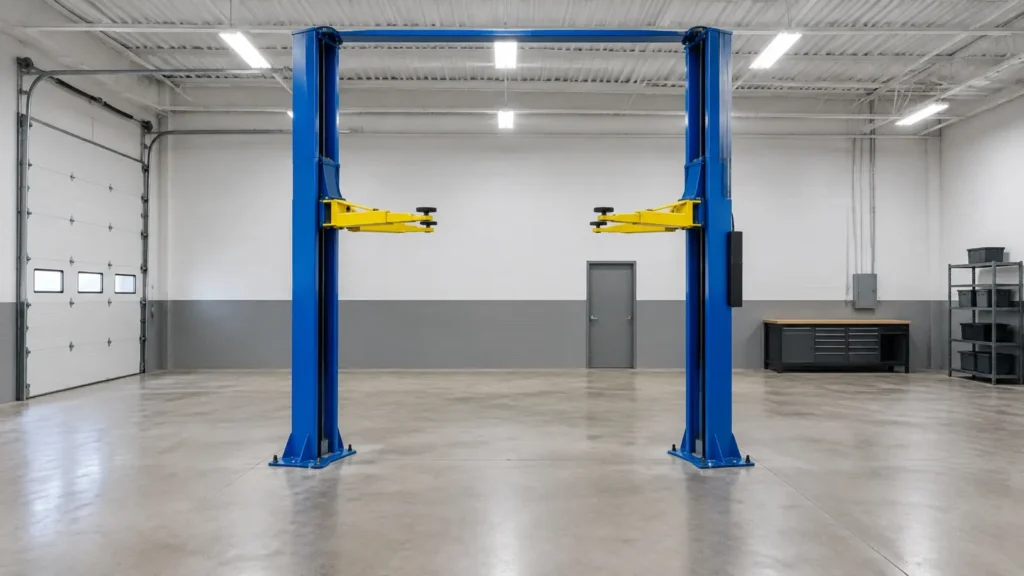

What Size Bay Do You Need for a 2 Post Lift?
You need a bay at least 12 feet wide and 24 feet long for a standard 2 post lift. That gives room for the roughly 11 to 12 foot lift footprint, the vehicle, and enough clearance on all sides to open doors, roll a jack around, and walk safely. Longer vehicles like pickups and vans push the length toward 30 feet or more.

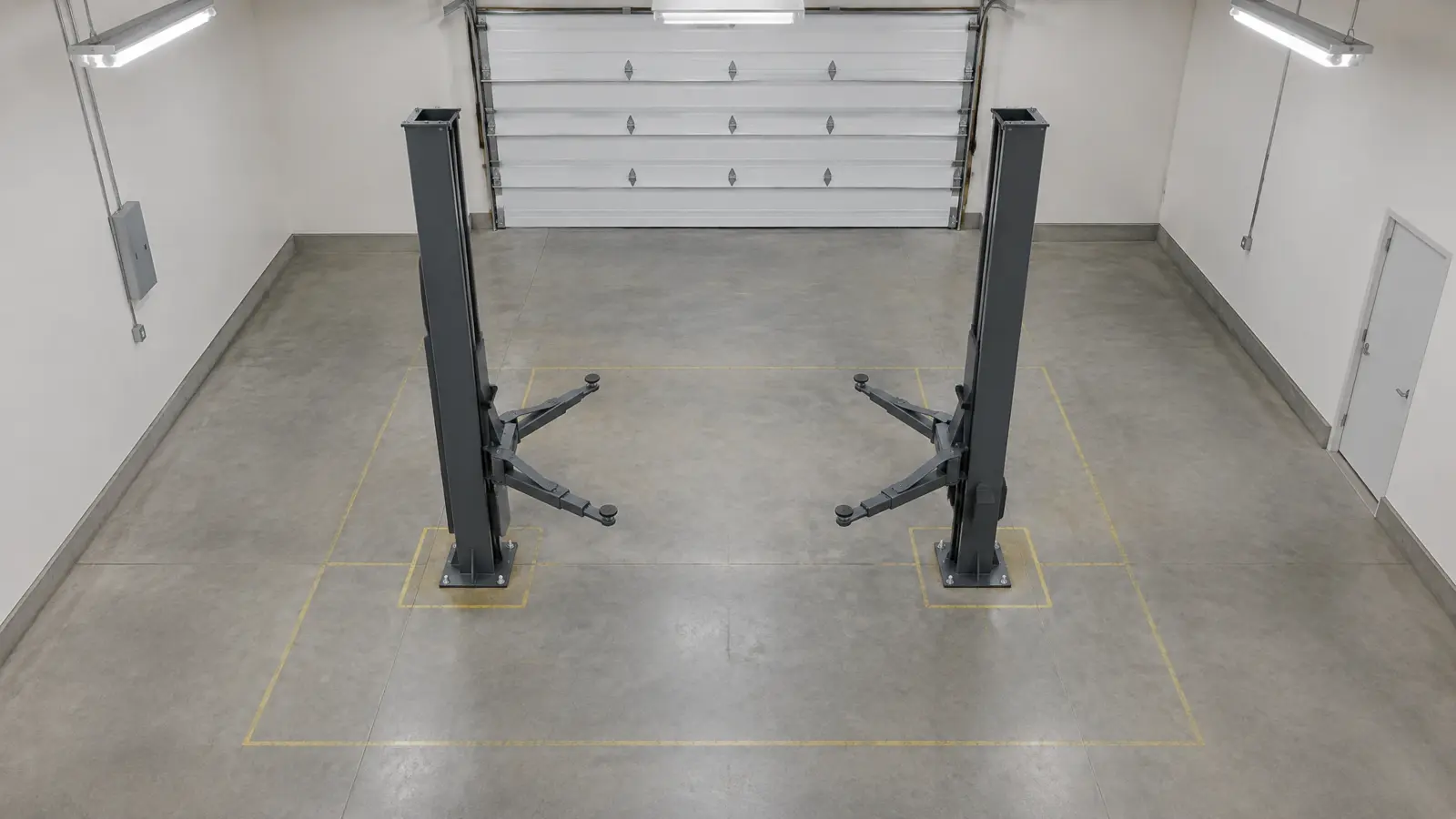

Recommended Bay Footprint
Think of the 2 post lift footprint as the lift plus a working buffer, not just the columns. A tight squeeze that fits the equipment but not your tools will slow you down every day. As a simple starting point:
- Width: 12 feet minimum, 14 to 16 feet if you run two lifts side by side.
- Length: 24 feet for cars and SUVs, up to 30 to 36 feet if you service trucks and vans.
- Working clearance: aim for at least 2 feet between the vehicle and any wall or equipment.
The 3-Measure Method
Before you shop, take three quick measurements and write them down. Measure up (floor to your lowest overhead obstruction). Measure across (bay width, wall to wall). Measure around (how much open floor you have to work). These three numbers, plus the heaviest vehicle you plan to lift, are all we need to spec the right model for you.
How Far From the Wall Should the Columns Be?
Column-to-wall distance depends on your arm setup. For a lift with symmetric arms, plan for the column centers to sit roughly 12 feet from the back wall. For asymmetric arms, about 9 to 10 feet from the wall is common, because more of the vehicle sits behind the columns. Always measure from the column center, not the outer housing, and follow your model's installation manual for the exact layout.

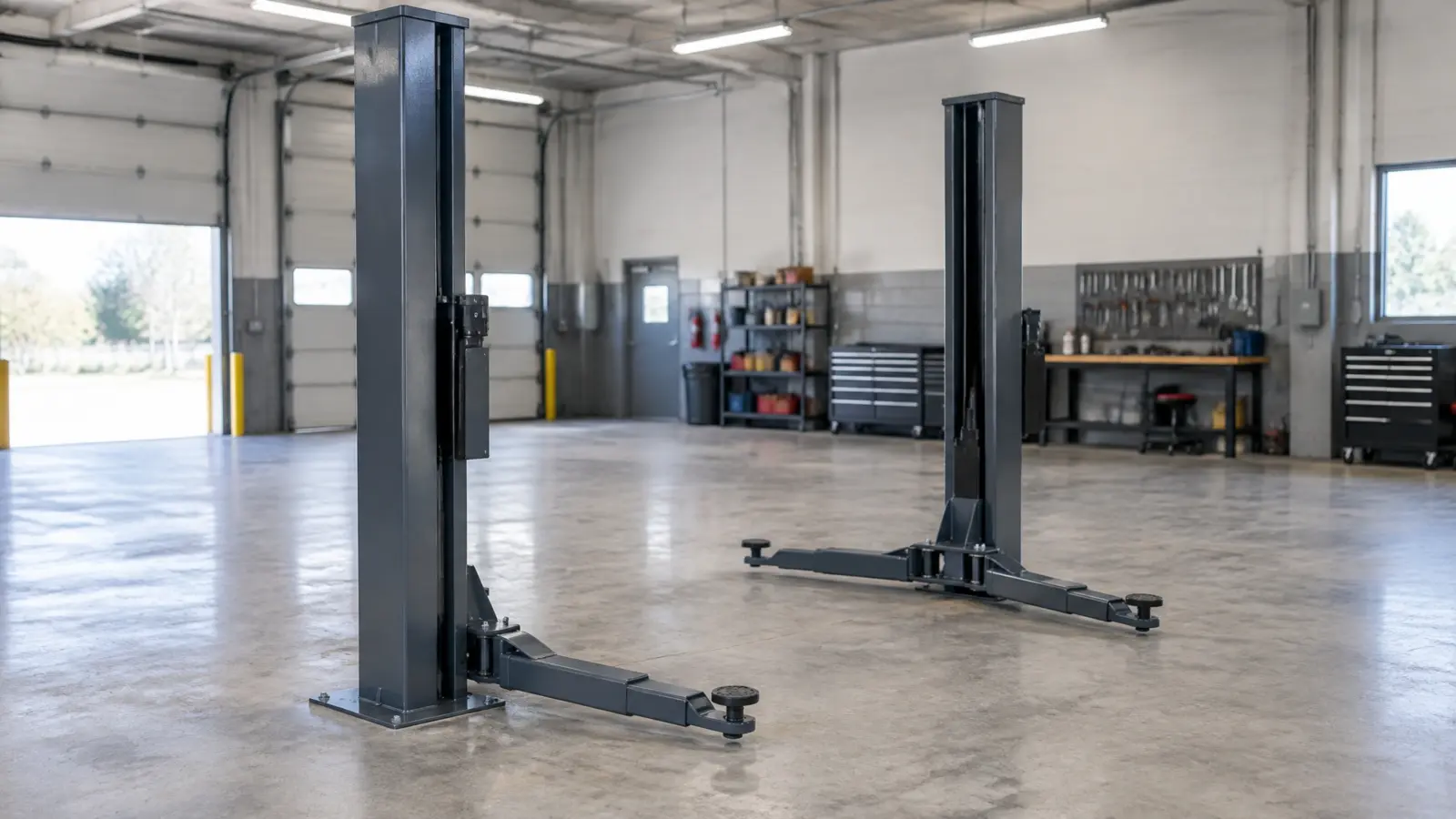

Do Low Ceilings Change the Dimensions You Need?
Yes. A low ceiling is the single most common reason a 2 post lift won't fit, and it's exactly where the floorplate design earns its keep. Because there's no overhead crossbar, a floorplate lift removes 10 to 12 inches of required height right off the top.
Daytona's LTPF9 at 110 inches and LTPF12 at 114 inches both slip under a standard 10-foot residential ceiling with room to spare. That opens the door for home garages and older shop buildings that simply can't take a full overhead unit.
A Contrarian Take on Dimensions
Most guides treat your lift's brochure numbers as the starting point. We'd flip that. Your real limits are set by your tallest vehicle and your lowest ceiling obstruction, not the lift itself. Measure your space and your vehicles first, then pick the lift that fits both. A floorplate design is often the correct primary choice for tall vans and low ceilings, not a compromise.
Concrete and Power Requirements at a Glance
Two dimensions live off the spec sheet but still make or break an install: your concrete and your power. Most 2 post lifts call for at least 4 inches of concrete rated 3,000 PSI or higher, fully cured for a minimum of 28 days before installation. Heavier-capacity lifts may require thicker or stronger concrete, so 2 post lift concrete thickness is not a one-size number. For the full breakdown, see our guide on how thick concrete needs to be for a 2 post lift.

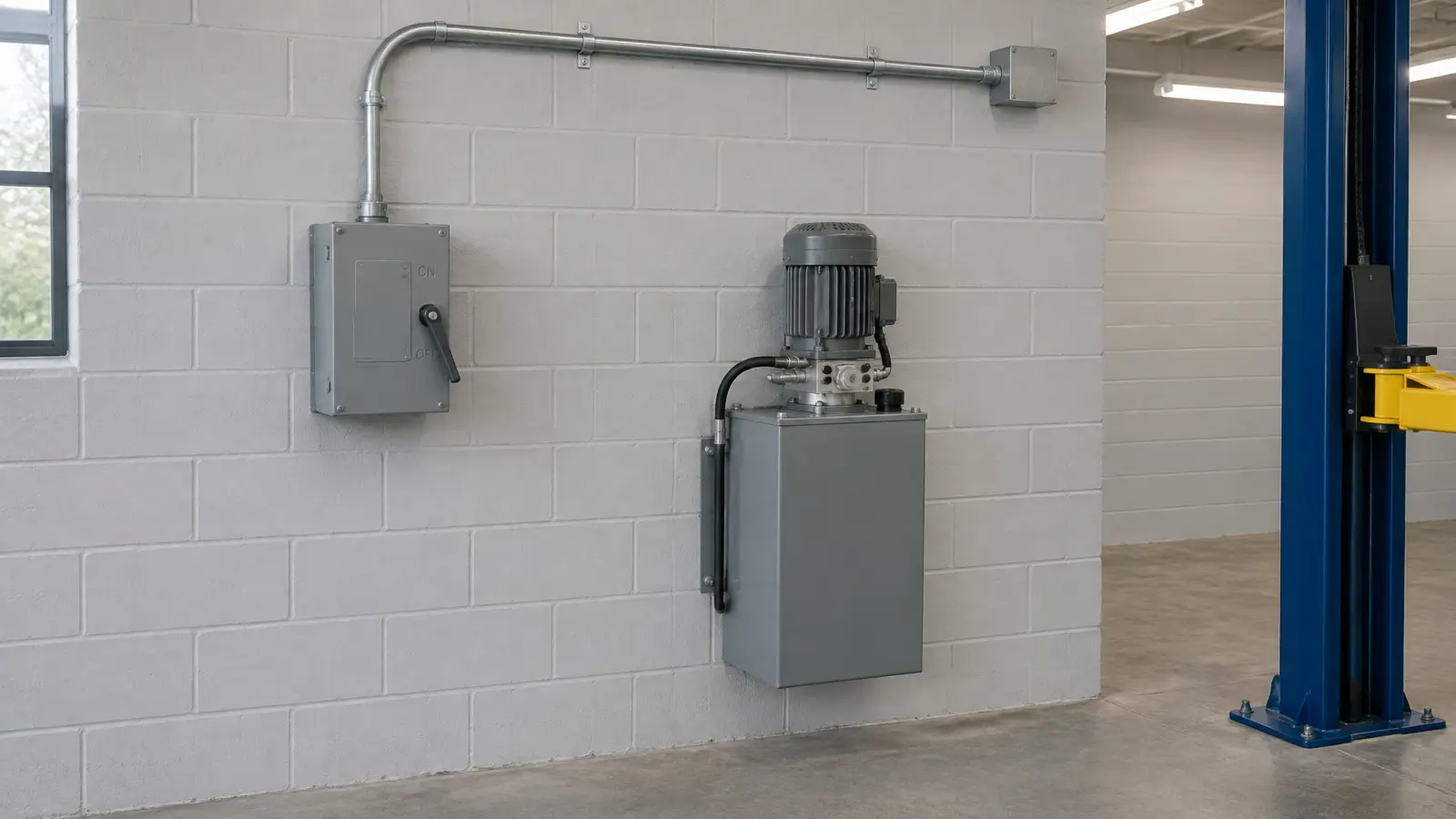

On the electrical side, most Daytona 2 post lifts run on a 240V, single-phase, 60Hz circuit at around 13 amps. Plan your 2 post lift power requirements with a qualified electrician so the circuit is ready before install day.
Safety First: Always Verify Before You Drill
Concrete thickness, anchor depth, and torque directly affect how safely a lift stands under load. Post-tension slabs and cracked or thin concrete need extra care. Always follow your model's installation manual and consult a qualified professional before drilling or anchoring. When in doubt, have the slab inspected first.
Daytona's 2 Post Lift Lineup
Daytona has built automotive lifts for the US and Canadian markets since 1999. Our 2 post range covers floorplate models for low ceilings, adjustable-width models for mixed fleets, and overhead models for standard bays, including the ALI Certified BR10-2OH-33. Every lift is backed by our 5-2-1 warranty (5 years structural, 2 years power units, 1 year parts), with freight included on warranty parts in the US and Canada.
Browse the full 2-post lift category or the wider automotive lifts hub, and read our best 2 post car lift buyer's guide for a deeper decision framework. For the official lift standard, the Automotive Lift Institute certifies lifts to the ANSI/ALI ALCTV standard.
Frequently Asked Questions
What are the dimensions of a 2 post lift?
A typical 2 post lift is about 132 to 142 inches wide overall, with 106 to 110 inches of inside column width and 94 to 100 inches of drive-thru clearance. Column height runs from about 110 inches on floorplate models to 155 inches on overhead models, and maximum lifting height is usually around 72 to 78 inches. Always confirm exact figures on the spec sheet for your chosen model.
How wide is a 2 post lift?
Most 2 post lifts are 132 to 142 inches wide overall, or roughly 11 to 12 feet, measured from the outside of one column to the outside of the other. The clear space between the posts is usually 106 to 110 inches, and the drive-thru clearance between the arms is often 94 to 100 inches. A bay at least 12 feet wide gives you room to fit the lift and work around the vehicle.
How tall is a 2 post car lift?
A 2 post car lift stands between about 110 and 155 inches tall, or roughly 9 to 13 feet, depending on the design. Floorplate models are shortest because they have no overhead bar, while overhead models are taller due to the crossbar and safety assembly. Daytona's LTPF9 floorplate lift is 110 inches and the LTPF12 is 114 inches.
What is the minimum ceiling height for a 2 post lift?
A floorplate 2 post lift can fit under a ceiling as low as about 9 feet 3 inches, while an overhead 2 post lift usually needs 11 to 13 feet. To find your exact requirement, add the lift's overall height, 10 to 12 inches for an overhead assembly if applicable, and at least a 1-inch safety gap. Always measure to the lowest overhead obstruction, not the ceiling peak.
How much space do you need for a 2 post lift?
A bay at least 12 feet wide by 24 feet long covers most cars and SUVs, giving room for the lift footprint, the vehicle, and working clearance on all sides. If you service pickups or vans, plan for 30 to 36 feet of length. Aim for at least 2 feet of clearance between the vehicle and any wall or equipment.
How far from the wall should a 2 post lift be?
For a lift with symmetric arms, the column centers usually sit about 12 feet from the back wall, while asymmetric arms are commonly placed 9 to 10 feet from the wall. Measure from the column center, not the outer housing, and follow your model's installation manual for the exact layout. Leave enough room to open doors and move tools around the vehicle.
Can you fit a 2 post lift in a two-car garage?
Often yes, if the garage is at least 12 feet wide, 24 feet long, and has enough ceiling height for the lift design you choose. Ceiling height is usually the limiting factor, so a floorplate model is the common solution in home garages with lower ceilings. Measure your width, length, and lowest overhead obstruction before deciding.
What is drive-thru clearance on a 2 post lift?
Drive-thru clearance is the usable space between the lift arms at tire level, typically 94 to 100 inches. It is the real limit for how wide a vehicle can pass between the columns, so it matters most for full-size trucks and wide SUVs. It is often narrower than the inside column width, so check this number if you service wide vehicles.
How thick does concrete need to be for a 2 post lift?
Most 2 post lifts require at least 4 inches of concrete rated 3,000 PSI or higher, fully cured for a minimum of 28 days. Higher-capacity lifts may need thicker or stronger concrete, and post-tension slabs need special care. Always follow your model's installation manual and consult a qualified professional before drilling or anchoring.
Which 2 post lift is best for a low ceiling?
A floorplate 2 post lift is the best choice for a low ceiling because it has no overhead crossbar, removing 10 to 12 inches from the height requirement. Daytona's LTPF9 (110 inches) and LTPF12 (114 inches) both fit under a standard 10-foot residential ceiling. Confirm your exact ceiling clearance against the model's overall height before buying.
