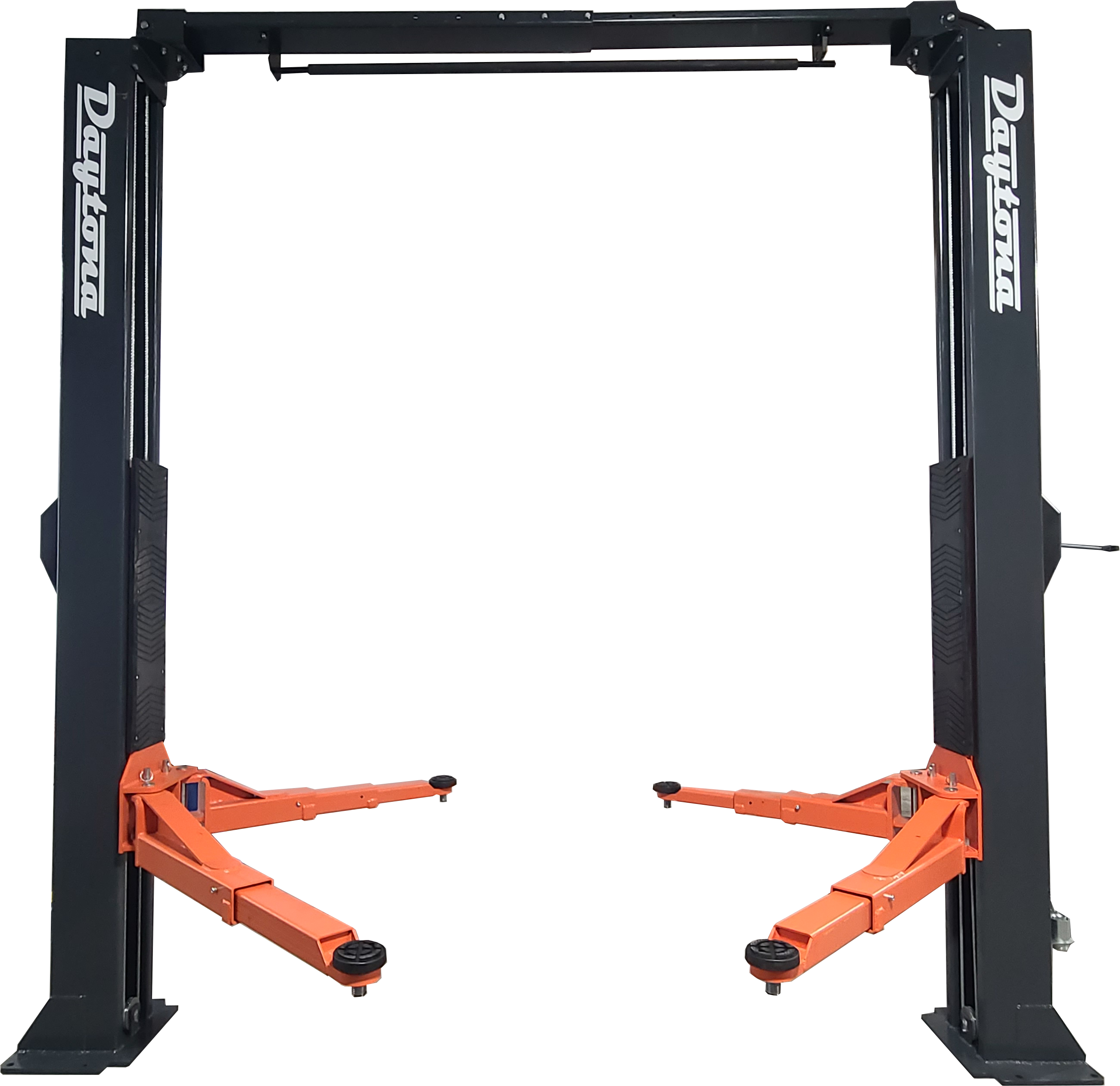

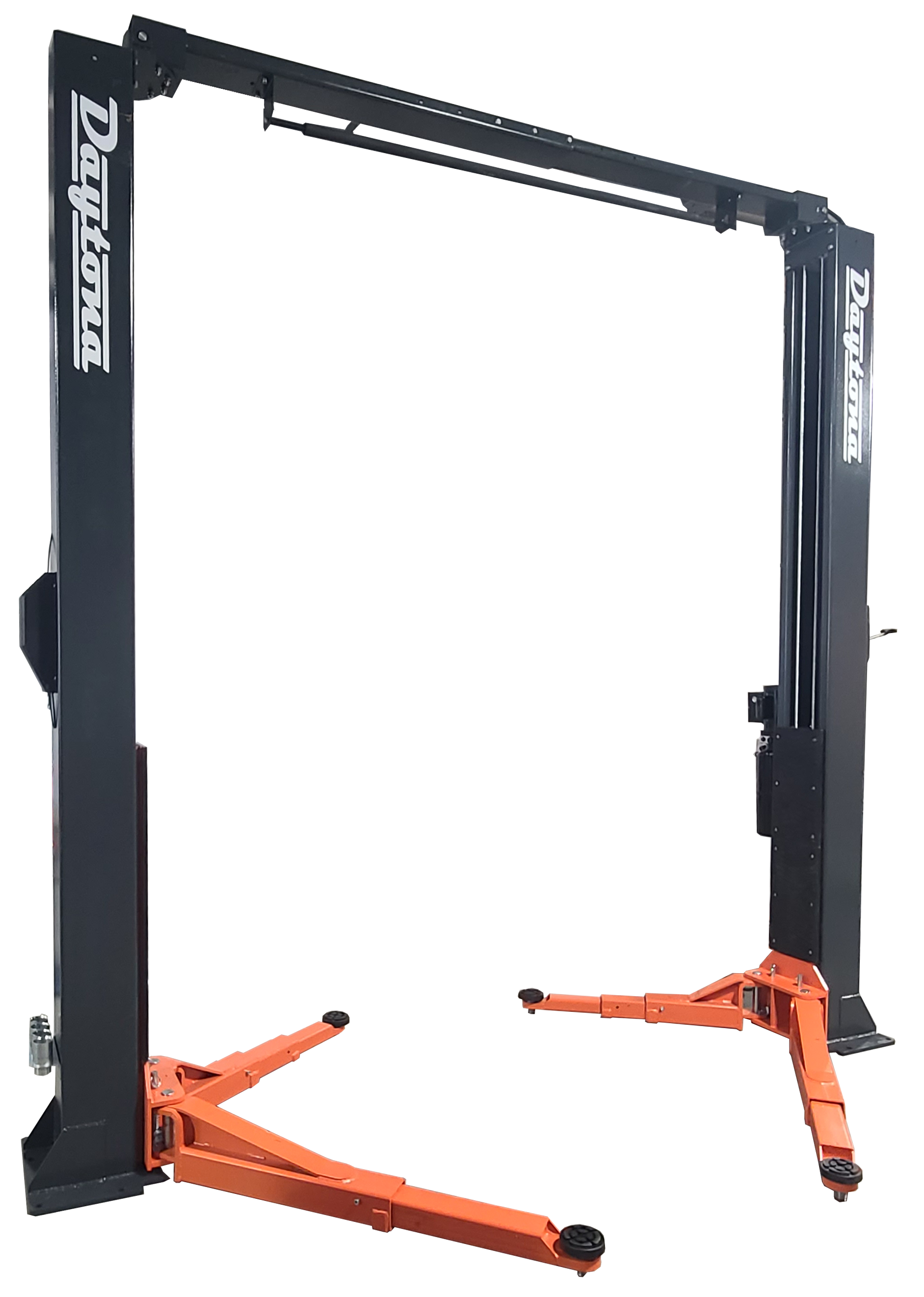

LTPA10-YON 10k Overhead Lift Adjustable Width

Specifications:

Power – 220V, 1Ph, 60Hz

A – Outer width from post base outsides – 139”

B – Inner width from base insides – 108“

C – Clearance under arm at full height – 68”

D – Inner width between posts – 113”

E – Outer width from posts outsides – 131”

F – Minimum clearance height of arms in the down position – 4.25″

G – Vehicle Clearance space in between arms – 101.5”

H – Safety cover with handle requires 12″ of space to operate

I – Post base dimensions – 19″ x 16″

J – Post dimensions – 9” x 11”

K – Height including overhead bar to floor – 142″ (not including optional 2’ foot height extension kit)



3 Width Settings:

Narrow Width: Drive Through – 88.6″

Medium Width: Drive through – 94.5″

Wide Width: Drive Through – 100.4″
