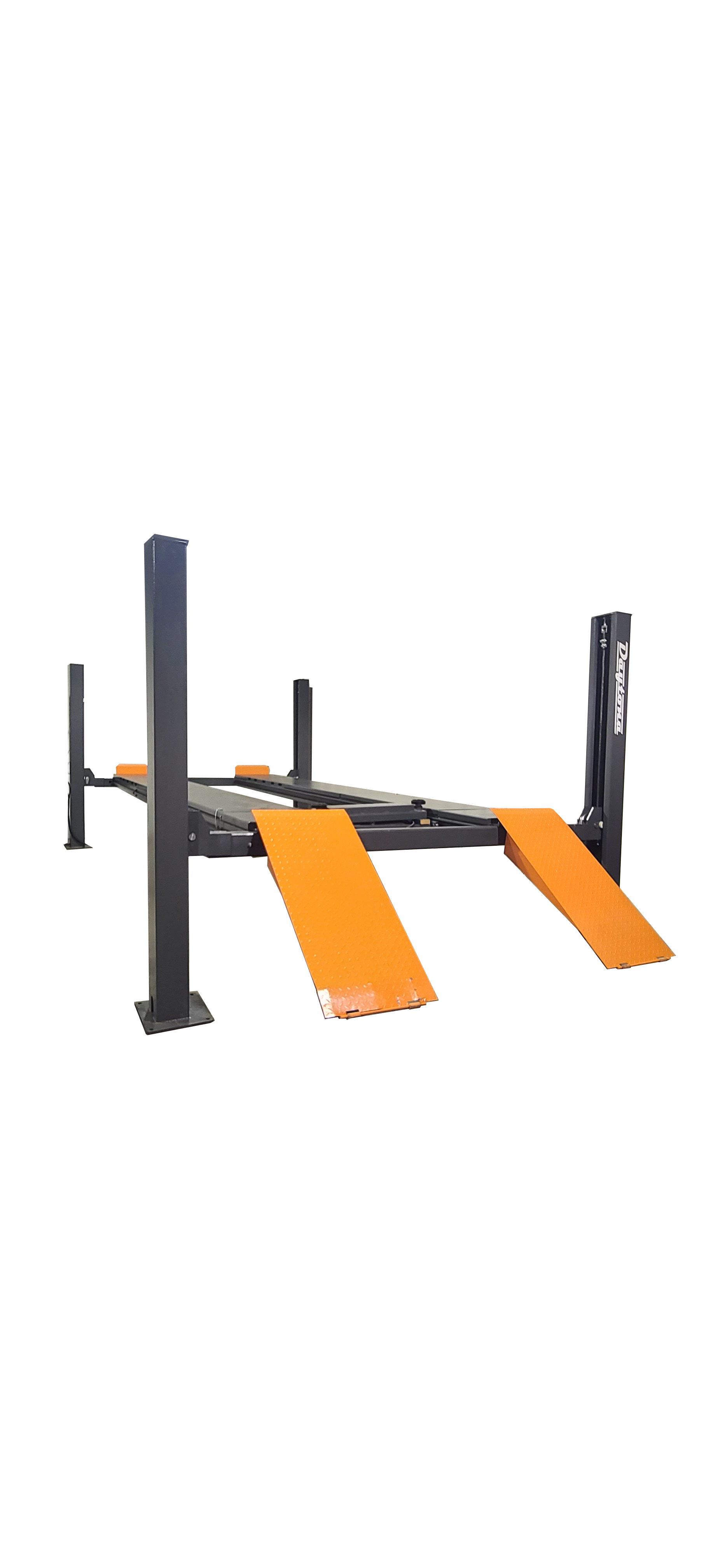

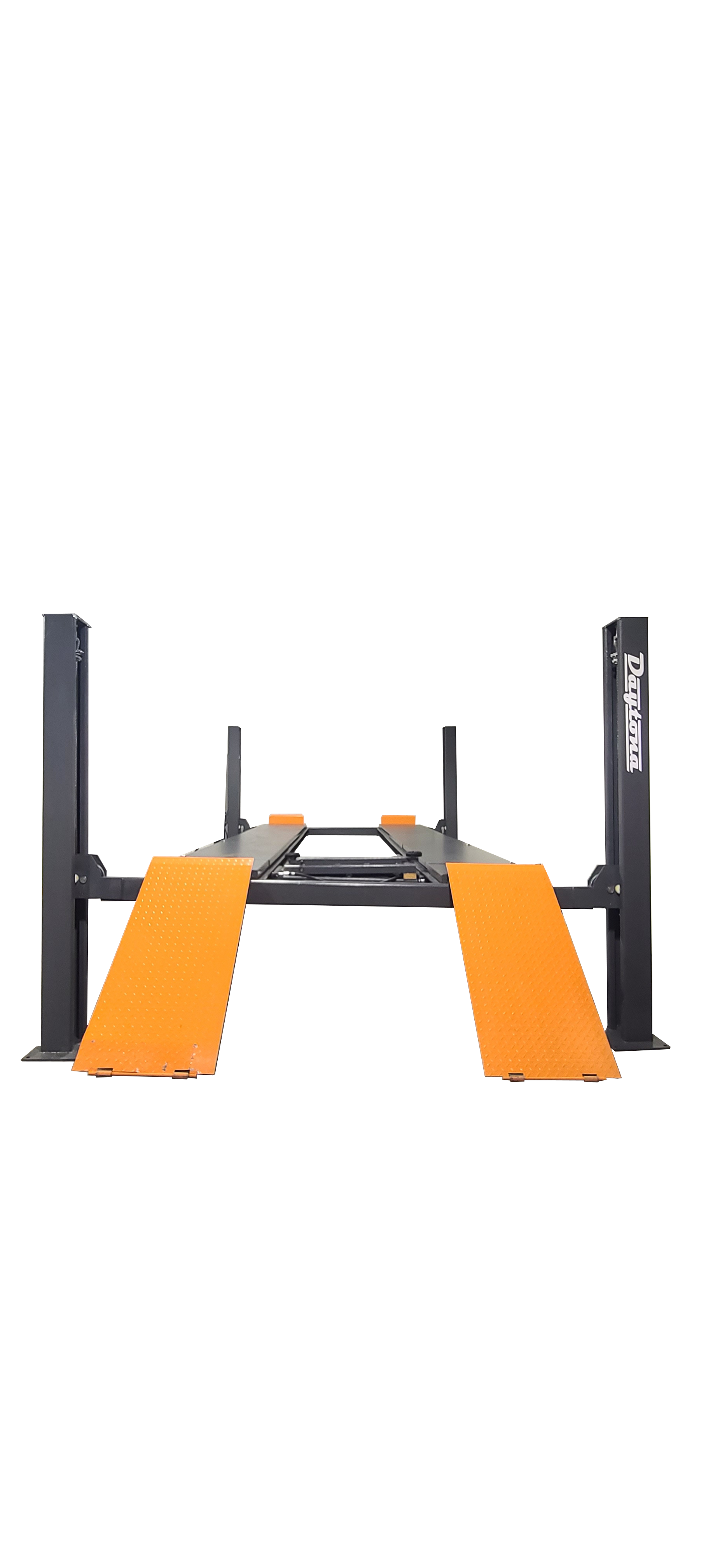

LFPA12-LIS 12K Alignment Lift

+ Free Shipping

Features:

  • Ladder lock system with manual release has locking positions every 3.5″ starting at 21″
  • Tilting approach ramps in bright orange
  • Large heavy duty 5“ cylinder
  • Aircraft quality lifting cables
  • Matted powder coat finish in dark Grey
  • Built in slip plates and adjustable turntables
  • 25.5″ runway accommodates various vehicle widths
  • Will accommodate most dual rear wheel pickup trucks
Please Note: Lift only – Wheel alignment machine is sold separately. Rolling jack is sold separately.
Category:

Specifications:

Power – 220V, 1PH, 20AMP

Rise Time – 110S

Drop Time – 110S

Post Dimensions – 9.75″ x 6.75″

Post Bases – 13.5″ x 16.5″

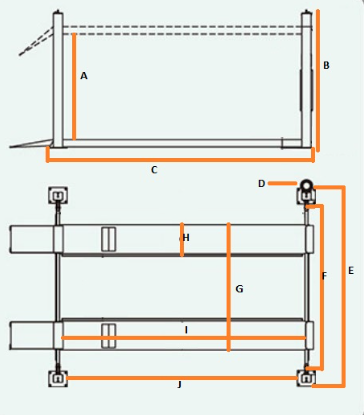

  • A – Clearance under runway at full height – 69″
  • B – Overall Height – 101″
  • C – Overall Length including Posts Bases – 236.5″
  • D – Pump sticks out 14″ from Post
  • E – Overall width including Posts Bases – 143.5″
  • F – Inner width inside Posts – 125″
  • G – Runway span – 95″
  • H – Runway width – 25.5″
  • I – Runway length – 217.25″
  • J – Inner length inside Posts – 210.25″
