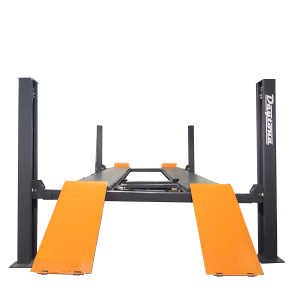

BR10-20H-33 ALI Certified – 10k Capacity

Specifications:

• Capacity – 10,000lbs
• Power – 220V 1Ph 60Hz
• A – Outer width from post base outsides – 154″
• B – Inner width from post base insides – 118″
• C – Clearance under arm at full height – 70″
• D – Inner width between posts – 123.5″
• E – Outer width from posts outsides – 137.5″
• F- Minimum clearance height of arms in the down position
• H – Vehicle Clearance space in-between arms – 113″
• J – Post dimensions – 7″ x 12″
• M – Post Bases dimensions – 18″ x 18″
• N – Height including overhead bar to floor – 144.5″
