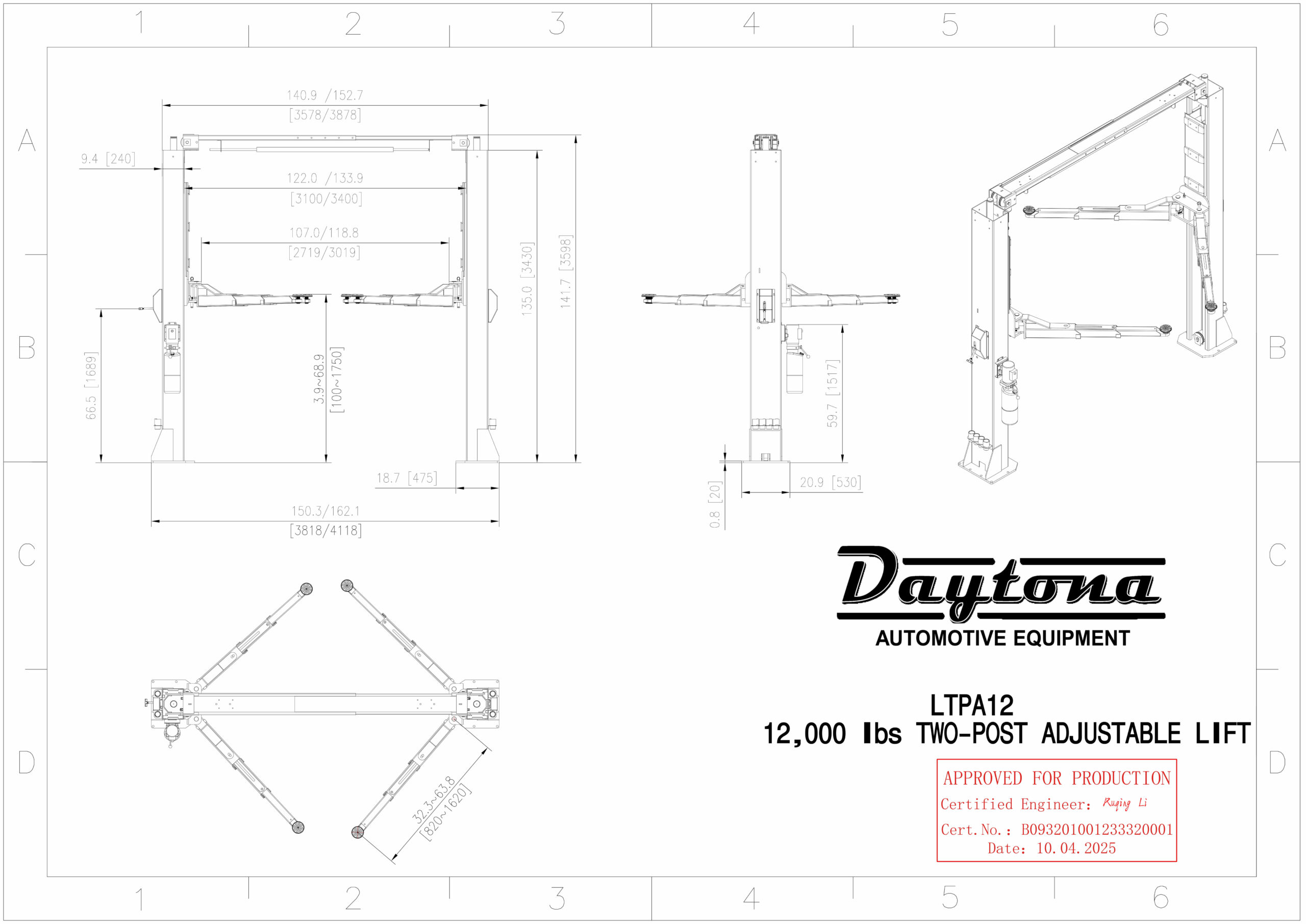

Specifications:
- Capacity – 12,000lbs
- Power – 220V, 1Ph, 60Hz
- Outer width from post base outsides – 144″
- Inner width from post base insides – 111″
- Clearance under arm at full height – 70″
- Inner width between posts – 119.5″
- Outer width from posts outsides – 134″
- Minimum clearance height of arms in the down position
- Vehicle Clearance space in-between arms – 108″
- Post dimensions – 7″ x 11.5″
- Post Bases dimensions – 16″ x 21.25″
- Height including overhead bar to floor – 154″
Shipping dimensions:
Lift 138″ x 22″ x 41″ 2360lbs
Pump 31″ x 11″ x 12″ 60lbs
Optional Height Kit 32″ x 15″ x 18″ 210lbs
