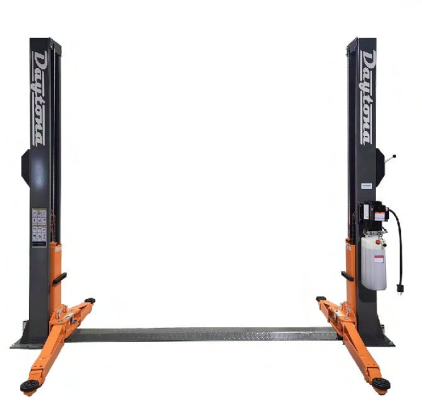

Daytona LTPF12 12,000 LBS 2-Post Lift
Floorplate Heavy-Duty Lift
12,000 lbs Capacity • Floorplate Design
The LTPF12 is a robust 12,000 lb capacity 2-post floorplate lift designed for heavy-duty automotive and light truck servicing, especially in shops with lower ceiling clearances. Featuring automatic safety locks with a single-point release, and dual chain-drive hydraulic cylinders, it delivers reliable performance for professional garages.
- Automatic safety locks with single point lock release system
- Dual chain drive hydraulic cylinders
- Three stage front arms with screw up pads included
Partnership Opportunity
We are actively looking for distributors and installers in Canada and the USA. Contact us today for exclusive details.
- 12,000 lbs lifting capacity.
- Automatic safety locks with single point release.
- Dual chain drive hydraulic cylinders.
- Three stage front arms with screw up pads.
- Standard truck adapters included.
- Durable powder coat finish.
Power Requirements
240V / 3HP / 13 Amp / 1 Ph / 60Hz
Dimensions, colours and items are subject to change without prior notice due to our continuous improvement program.

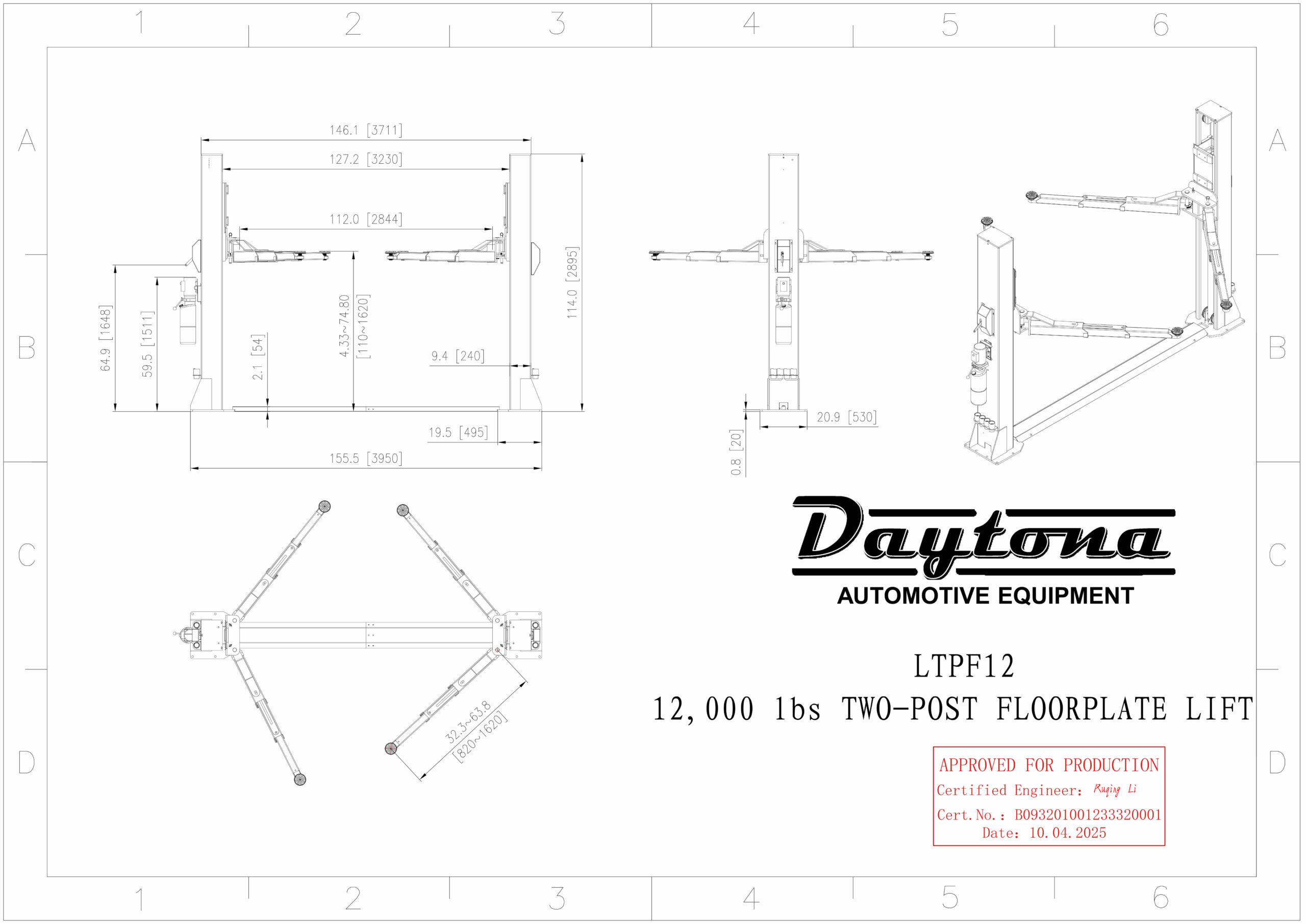

| Specification | Measurement |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Overall Height | 114.0" |
| Overall Width | 146.1" |
| Lifting Height | 4.33" ~ 74.80" |
| Shipping Weight (Lift) | 2200 lbs |
Heavy Duty Performance in Compact Spaces
The LTPF12 is ideal for shops servicing heavy pickups, work vans, and commercial vehicles where ceiling height is a concern.
Commercial Fleet Service
Reliable 12,000 lb capacity for heavy-duty fleet maintenance.
Low Ceiling Shops
Floorplate design allows installation in facilities with height restrictions.
What is the lifting capacity of the LTPF12?
The LTPF12 has a maximum lifting capacity of 12,000 lbs, making it suitable for heavy-duty trucks and commercial vehicles.
What ceiling height is required for this lift?
The LTPF12 features a floorplate design with an overall column height of 114 inches. Because there is no overhead crossbar, it is ideal for shops with lower ceiling clearances.
Does the LTPF12 come with truck adapters?
Yes, standard truck adapters and screw-up pads are included with the LTPF12 to accommodate a wide range of vehicle frames.
What are the power requirements?
The unit requires 240V, 3HP, 13A, Single Phase (PH1), 60Hz power supply.
