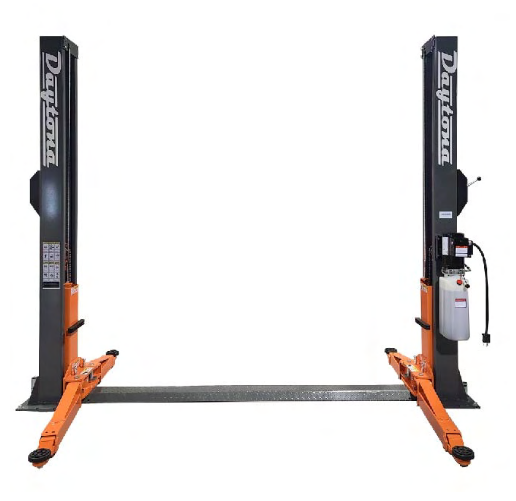

Daytona LTPF9 9,000 LBS 2-Post Floorplate Lift
9,000 lbs lifting capacity for professional shops.
The LTPF9 is a robust 2-post automotive lift featuring a floorplate design, ideal for facilities with lower ceiling heights. Equipped with chain-over hydraulic cylinders, high-polymer slide blocks, and three-stage front arms, it offers a reliable and versatile lifting solution for vehicles up to 9,000 lbs.
Product Highlights
- 9,000 lbs Lifting Capacity
- Single point safety lock release
- Chain-over hydraulic cylinders
- Standard truck adapters included
Partnership Opportunity
We are actively looking for distributors and installers in Canada and the USA. Contact us today for exclusive details.
- 9,000 lbs lifting capacity
- Automatic safety locks with single point release
- High polymer polyethylene wear resistant slide blocks
- Chain-over hydraulic cylinders for powerful lifting
- Three stage front arms, screw up pads, and truck adapters
- Rubber door guards and height limit switch
Power Requirements
240V 3HP 13A PH1 60Hz

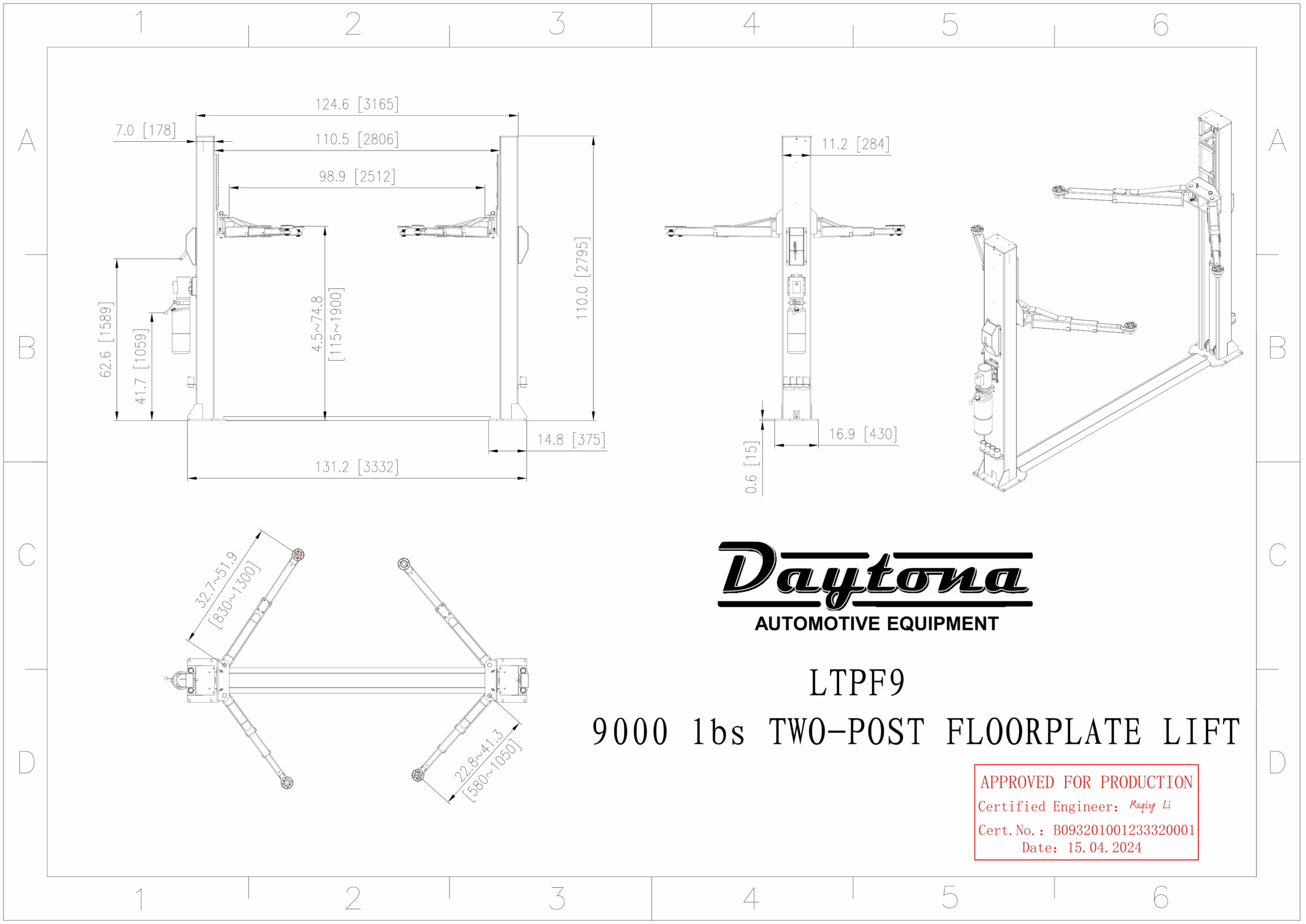

Key Dimensions
- Overall Height: 110.0"
- Overall Width: 131.2"
- Drive-Through: 98.9"
Dimensions, colours and items are subject to change without prior notice due to our continuous improvement program.
| Specification | Measurement |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Height | 4.5" – 74.8" |
| Width Between Columns | 110.5" |
| Shipping Dimensions: Lift | 114" x 18" x 30" / 1300 lbs |
| Shipping Dimensions: Pump | 31" x 12" x 11" / 60 lbs |
The Professional Choice for Low-Ceiling Bays
The LTPF9 is specifically engineered for shops that require a heavy-duty 9,000 lb lift but are constrained by overhead height. Its floorplate design eliminates the top crossbar, making it a versatile workhorse for a variety of automotive environments.
Low-Ceiling Facilities
Perfect for older buildings or garages where standard 12ft+ clear-floor lifts cannot be installed.
General Service
Handles everything from compact cars to light-duty trucks with ease, thanks to versatile three-stage arms.
Reliable Performance
Built for high-volume use with wear-resistant components and a durable powder-coat finish.
What is the minimum ceiling height required for the LTPF9?
Because the LTPF9 is a floorplate design with no overhead bar, the minimum ceiling height is determined by the height of the columns (approx. 110 inches) plus the height of the vehicle you intend to lift. It is significantly more flexible than clear-floor models.
Does this lift include truck adapters?
Yes, standard truck adapters are included with every LTPF9 purchase, allowing you to safely lift SUVs and trucks immediately after installation.
What are the concrete requirements for installation?
For safe operation, the lift must be installed on a minimum of 4-6 inches of 3000-4000 PSI concrete. Always refer to the user manual for specific anchoring instructions.
What is a "single point release" safety lock?
The single point release allows the operator to disengage the safety locks on both columns from one side of the lift, making the lowering process faster and more convenient.
Contact Us
Whether you are looking to become a distributor, an installer, or outfitting your own garage, contact us for more details and pricing.
