Daytona LMS6 6,000 LBS Mid-Rise Scissor Lift
6,000 lb lifting capacity with 45 second rise time.
The LMS6 is a high-performance mid-rise scissor lift featuring an ultra-thin design, making it the perfect solution for low-clearance vehicles and shops with limited space. Engineered with a double cylinder design for smooth, reliable lifting, it comes standard with height extensions and a durable powder-coated finish for industrial-grade longevity.
Product Highlights
- Double cylinder design for powerful lifting
- Built-in mechanical safety locks
- Ultra-thin low profile design
- Standard height extensions included
Ideal for tire, brake, and body work.
Partnership Opportunity
We are actively looking for distributors and installers in Canada and the USA. Contact us today for exclusive details.
- Double cylinder design for smooth and powerful performance
- Mechanical safety locks ensure maximum operator security
- Ultra-thin profile for low-clearance vehicle accessibility
- Durable powder-coated finish resists wear and chemicals
- Standard height extensions included for frame versatility
- Compact footprint ideal for smaller service bays
Power Requirements
120V 1.5HP 15A 1PH 60Hz
Key Performance
- Lifting Capacity: 6,000 lbs
- Rise Time: 45 Seconds
- Min Clearance: 5.5"
Dimensions, colours and items are subject to change without prior notice due to our continuous improvement program.

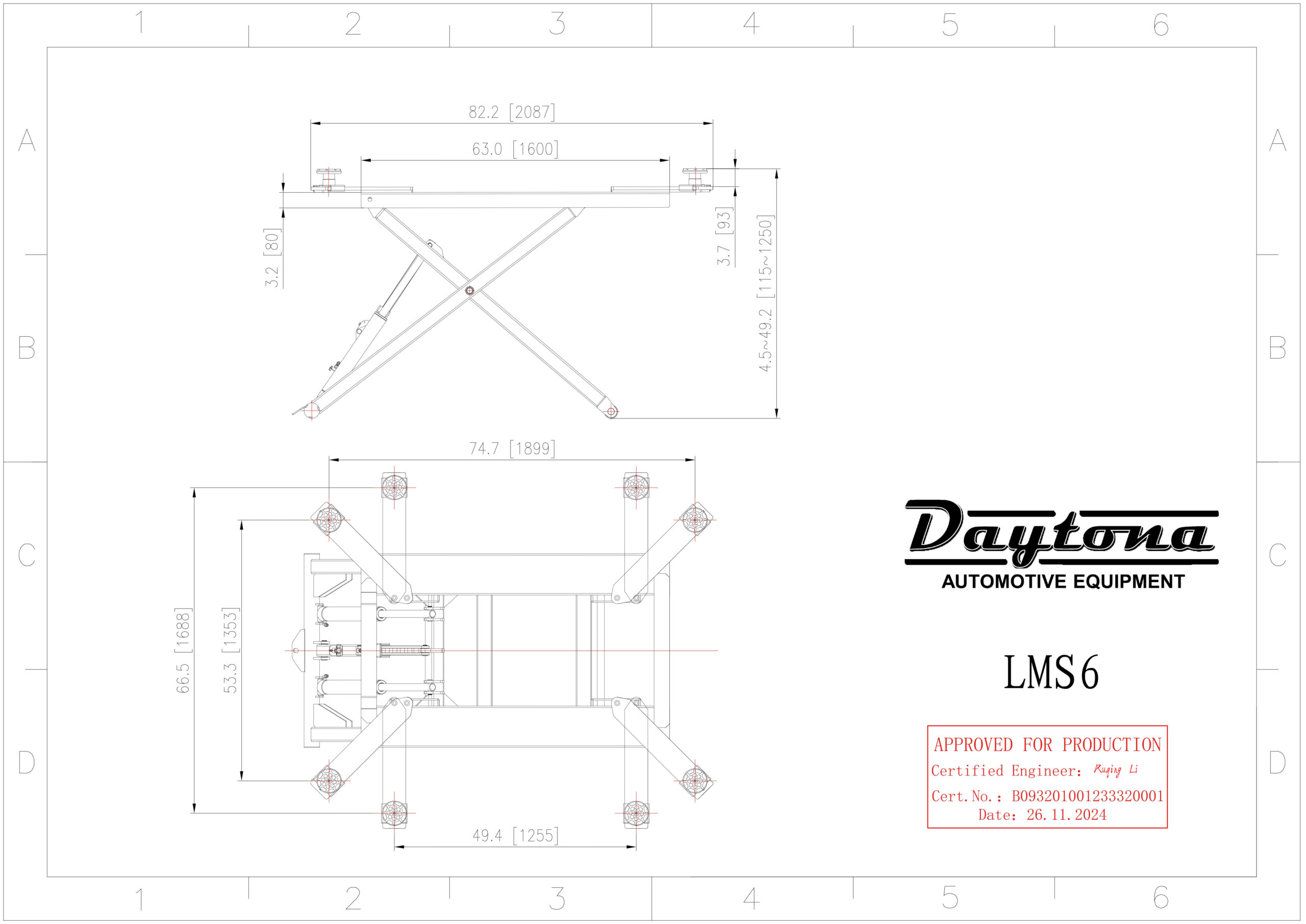

| Specification | Measurement |
|---|---|
| Max Lifting Height | 54.0" |
| Platform Dimensions | 63.0" L x 39.0" W |
| Base Dimensions | 84.0" L x 40.0" W |
| Extensions & Pads | Adds 2.5" to 8" height |
| Shipping Dimensions: Lift | 87" x 43" x 9" / 880 lbs |
| Shipping Dimensions: Pump | 31" x 11" x 12" / 60 lbs |
Compact Power for Specialized Service
The LMS6 is designed for shops and enthusiasts who need professional lifting capabilities without the permanent footprint of a full-size 2-post lift. It is exceptionally well-suited for specific service tasks and space-constrained environments.
Tire & Brake Bays
The mid-rise height provides perfect ergonomic access for wheel-off services, suspension work, and brake repairs.
Body & Detailing
Ideal for lower-body detailing, paint correction, and light bodywork where raising the vehicle to chest height is sufficient.
Home & Hobbyist Garages
The 120V power requirement and compact storage profile make it the ultimate choice for home restoration projects.
What is the maximum lifting height of the LMS6?
The LMS6 has a maximum lifting height of 54 inches. This height is ideal for most tire, brake, and suspension services, as well as lower-body detailing.
Can this lift handle low-profile vehicles?
Yes, the LMS6 features an ultra-thin design with a minimum clearance of only 5.5 inches at its lowered height, allowing it to fit under most sports cars and lowered vehicles.
Are height extensions included with the lift?
Yes, height extensions and lifting pads are included as standard equipment. These allow you to add between 2.5" to 8" to the lifting height to accommodate various vehicle frames and pick-up points.
What are the electrical power requirements?
The LMS6 is designed for easy installation and operates on a standard 120V, 1.5HP, 15 Amp, Single Phase (1PH), 60Hz power supply.
