LMATV 2,200 lbs Motorcycle and ATV Lift

+ Free Shipping

Features:

Removable side platform extensions give you the option of leaving these on your lift to store and work on an ATV, or remove them for easy access when working and storing a Motorcycle.
Side ramps can be adjusted to accommodate narrow ATV wheels.
Center front and rear wheel drop out for easy Motorcycle wheel removal.
Comes with a wheel mobility kit
Durable powder coat finish
Simple operation with a convenient 2 button pendant safety controls your lift.
Comes with front wheel chock.

Optional add-ons available for purchase:

Front wheel vice, LPYON-056
Center 1,100lb capacity mini jack, LPYON-057

Download Brochure

Download User Manual

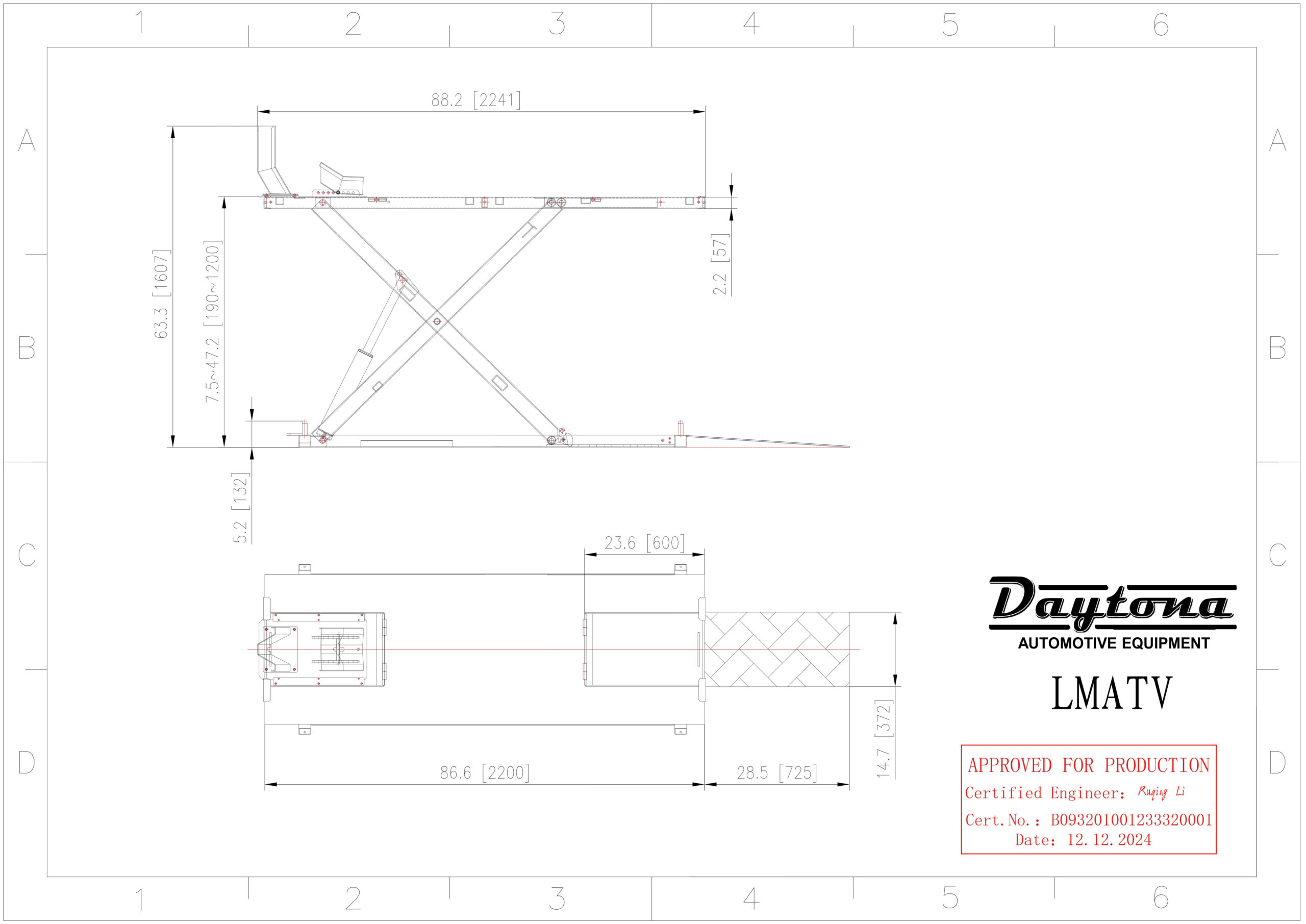

Download Blueprints

Specifications:

Power – Volts 120, HP 1, Amp 8, Ph 1, Hz 60
A- Length of platform 86.5″
B- Total width 56.5″
C- Center platform width 29.5″
D- Side ramps 29.5″ x 10.5″
E- Center ramp 45.5″ x 15″
F- Lowered height 8″
G- Max lifting height 48″
H- Side platform extension 86.5″ x 13.5″
Weight capacity 2,200 lbs

Shipping dimensions:

Lift 87” x 30” x 12” 485lbs
Skid of included items 48” x 40” x 16” 245lbs
Optional Wheel Clamp 23” x 18” x 9” 33lbs
Optional Mini Jack 21” x 13” x 5” 38lbs
