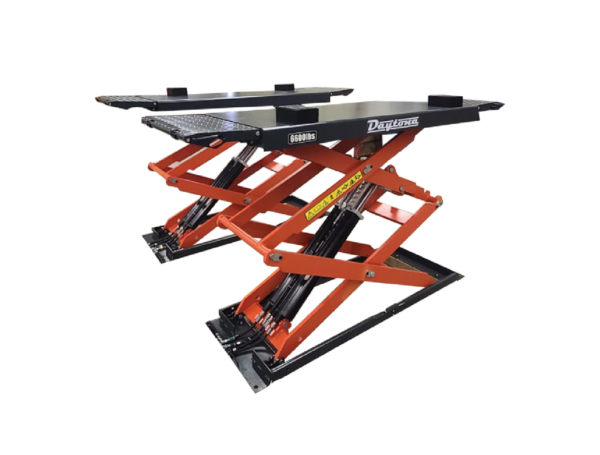

LHS7 6,600 lbs HighRise Scissor Lift

Specifications:

• Power – Volts 240, HP 3, Amp 12, Ph 1, Hz 60
• 6,600lb lifting capacity
• 1 minute rise time

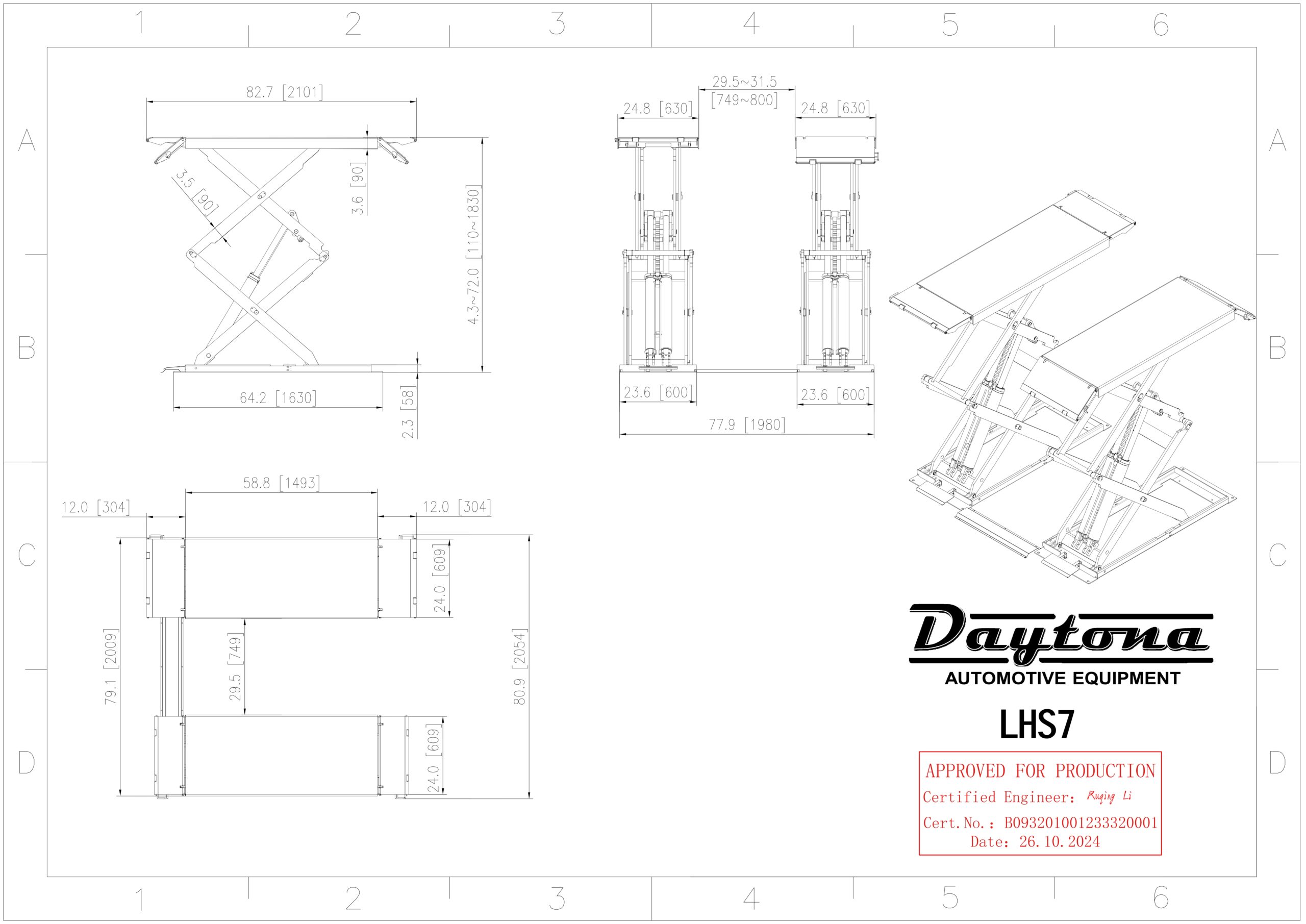

• A – Max Height 74.5”
• B – Max locking height 71”
• C – lowered platform height 4.5”
• D – Max width 81”
• E – Platform only 59” x 25”
• F – Platform with ramps 83” x 25″
• Comes with 4 blocks 2.5”x5”x6.5”
• Comes with 9ft hose to connect lift to power unit

Shipping dimensions:

Lift 65” x 25” x 13” 1695lbs
Motor 41” x 15” x 21” 165lbs
