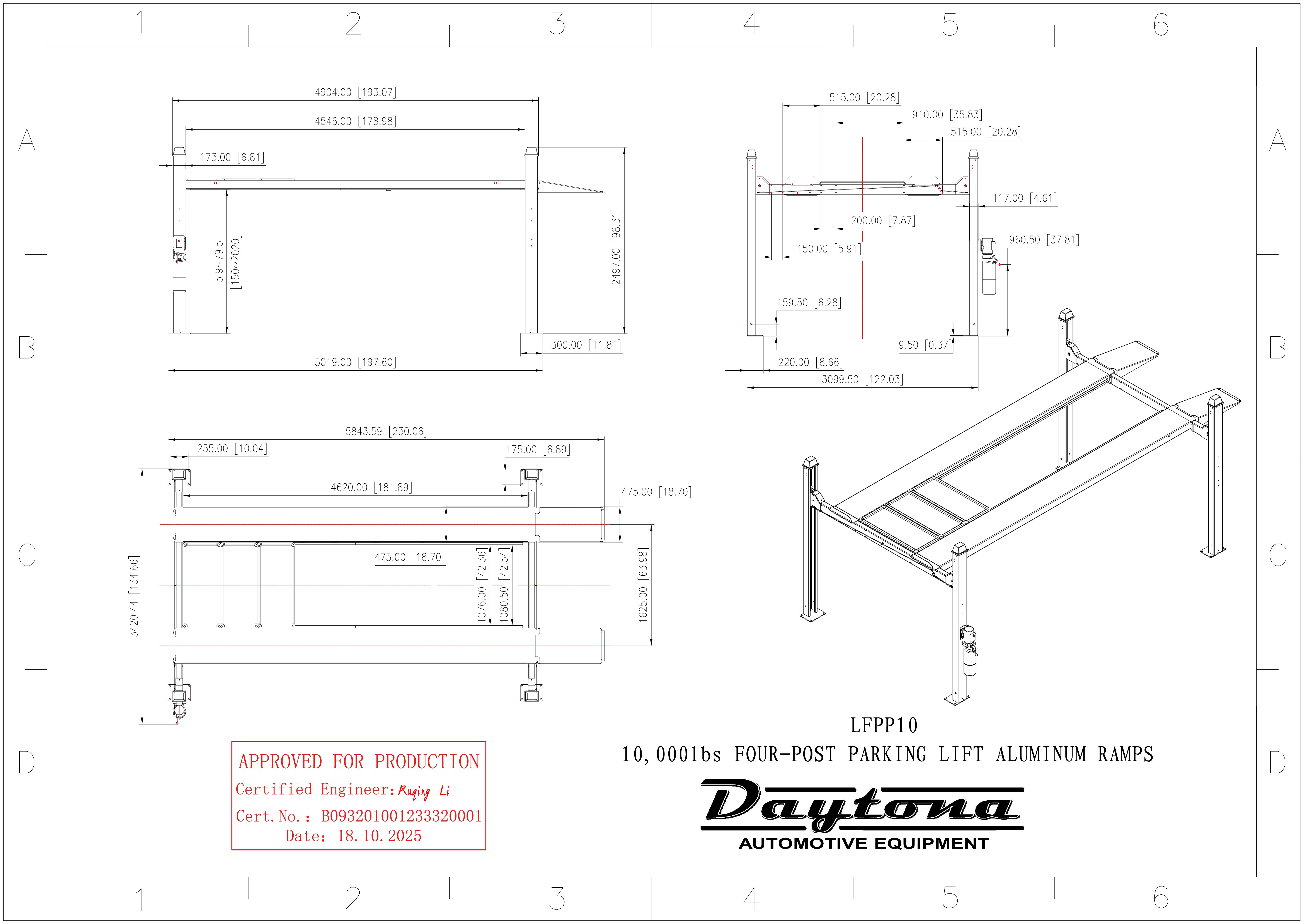

Specifications:
Power – Volts 120, HP 1.5, Amp 15, Ph 1, Hz 60
Rise Time – 110s
Drop Time – 110s
Clearance under runway at full height – 77″
Overall Height – 96″
Overall Length including Posts Bases – 197.5″
Pump sticks out 13″ from Post
Overall width including Posts Bases – 126.5″
Inner width inside Posts – 113″
Runway span – 82.5″
Runway width – 18.5″
Runway length – 182″
Inner length inside Posts – 179″
K – Approach Ramp Dimensions – 36″ x 19″
L – Post Dimensions – 5″ x 6″
Post Bases – 12″ x 12″
Shipping dimensions:
Lift 191” x 24” x 29” 2380lbs
Pump is wrapped up inside the lift and included in the Lift’s dimensions.
Optional Wheel Kit 40” x 24” x 10” 120lbs
Optional Rolling Jack 38” x 25” x 10” 300lbs
