Specifications:
Power – Volts 240, HP 4, Amp 15, Ph 1, Hz 60
Rise Time – 110s
Drop Time – 110s
Post Dimensions – 9.75″ x 6.75″
Post Bases – 13.5″ x 16.5″
Approach ramp Dimensions – 54.5″ x 23.5″

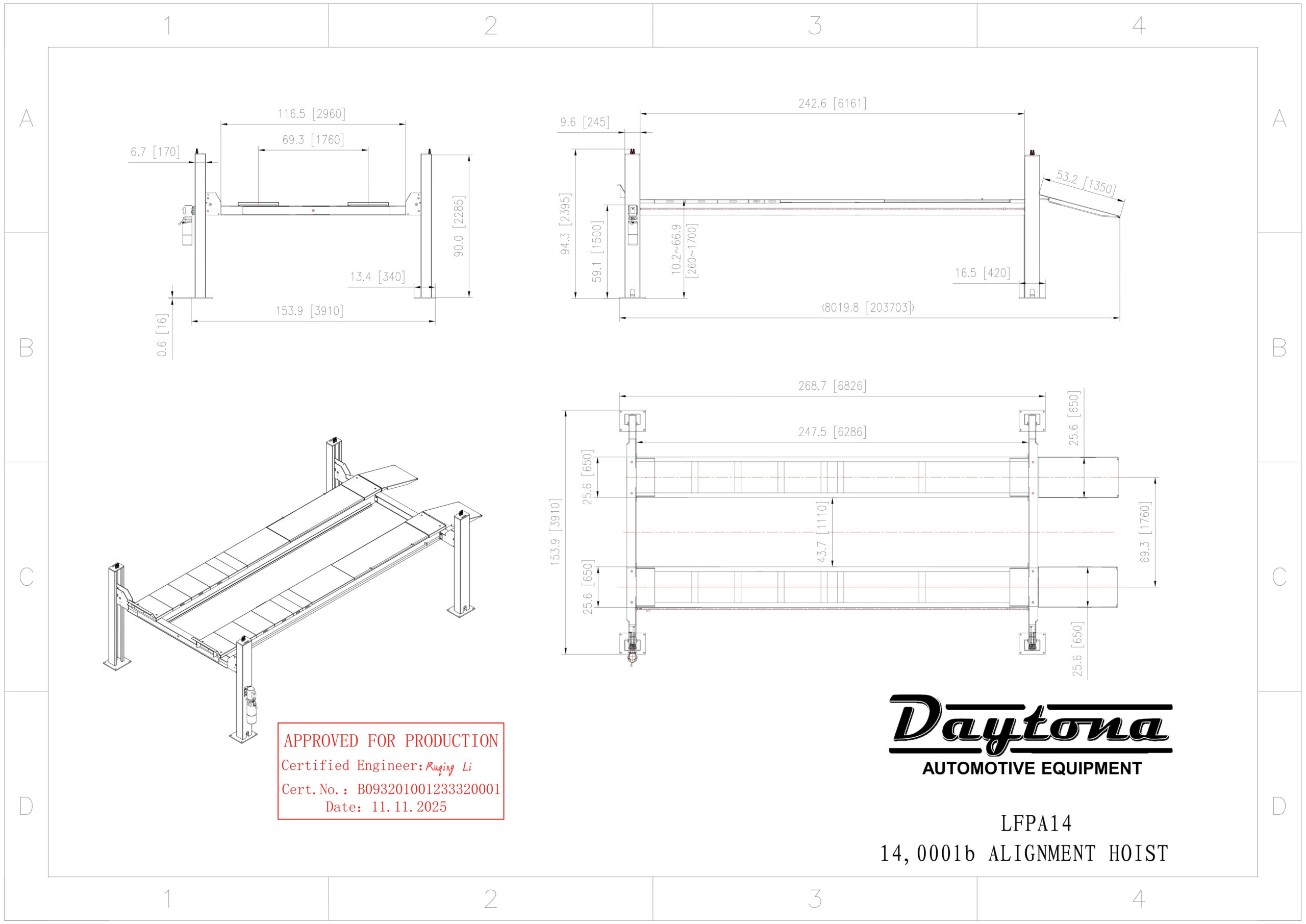

- A – Clearance under runway at full height – 69″
- B – Overall Height – 101″
- C – Overall Length including Posts Bases – 236.5″
- D – Pump sticks out 14″ from Post
- E – Overall width including Posts Bases – 143.5″
- F – Inner width inside Posts – 125″
- G – Runway span – 95″
- H – Runway width – 25.5″
- I – Runway length – 236″
- J – Inner length inside Posts – 229.5″
Shipping dimensions:
Lift 246” x 29” x 42” 6750lbs
Pump is wrapped up inside the lift and included in the Lift’s dimensions.
Optional Rolling Jack 43” x 23” x 10” 310lbs
