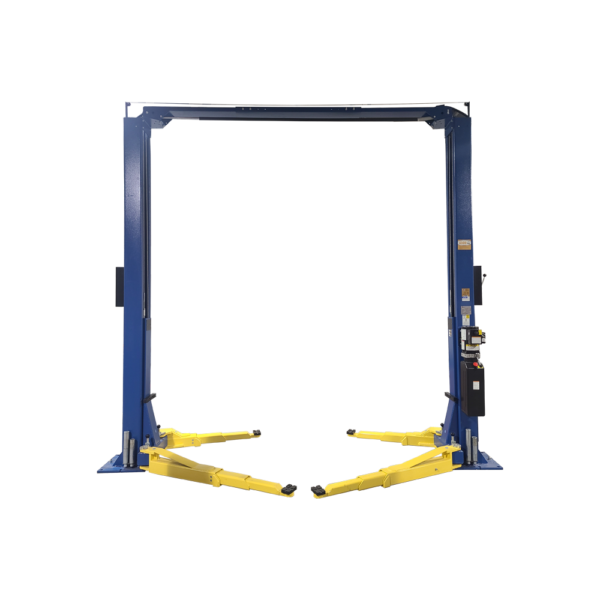

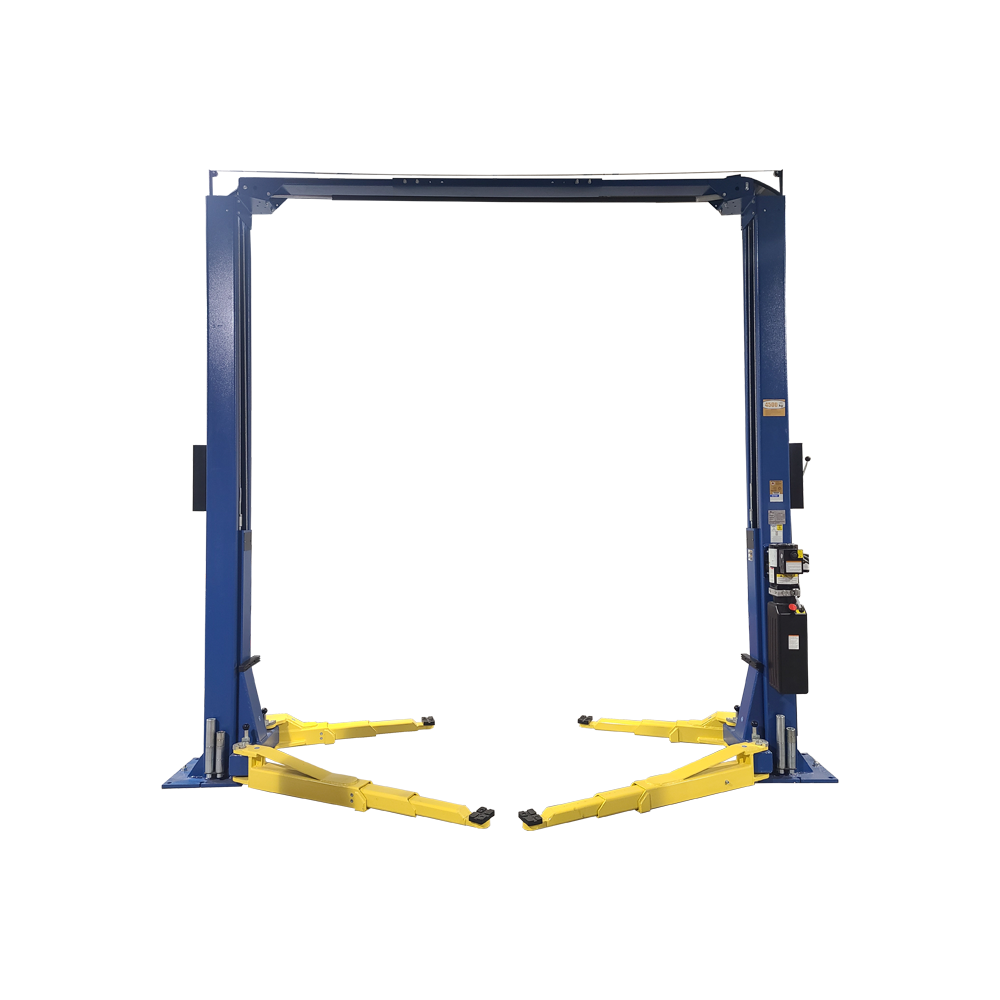

BR10-20H-33 10,000 lbs 2-Post Overhead Lift ALI Certified

Specifications:

• Capacity – 10,000lbs
• Power – Volts 240, HP 3,  Amp 12,  Ph 1,  Hz 60

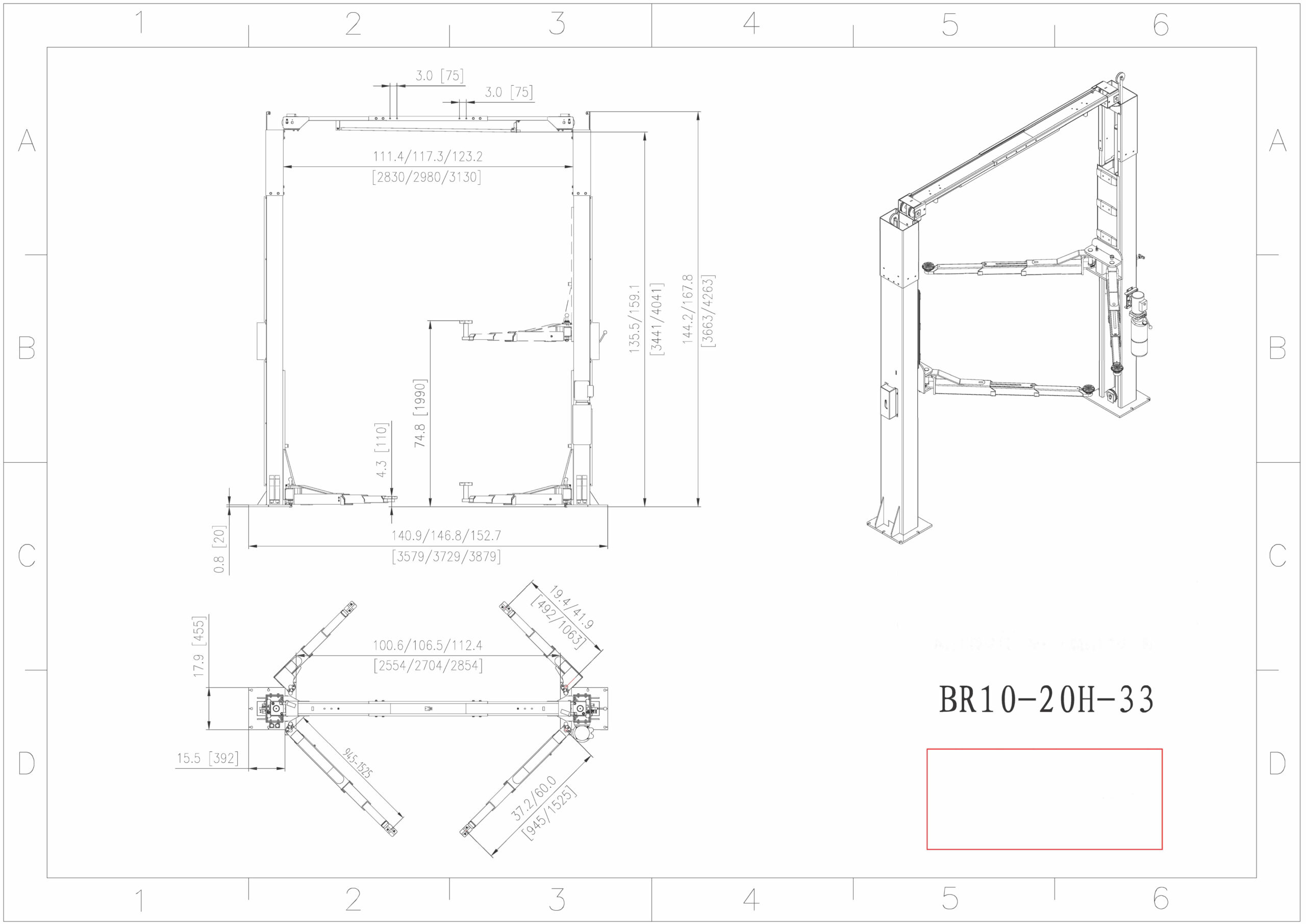

• A – Outer width from post base outsides – 154″
• B – Inner width from post base insides – 118″
• C – Clearance under arm at full height – 70″
• D – Inner width between posts – 123.5″
• E – Outer width from posts outsides – 137.5″
• F- Minimum pad height of arms in the down position – 4″
• G- Vehicle Clearance space in-between arms – 113″
• H- Safety cover with handles requires 9″ of space to operate
• I- Post Bases dimensions – 18″ x 18″
• J- Post dimensions – 7″ x 12″
• K – Height including overhead bar to floor – 144.5″         (Not including optional 2’foot height extension kit)

3 Width Settings:

Narrow Width:

• Overall – 140.43″
• Inside Columns – 111.42″
• Drive through – 88.15″

Medium Width:

• Overall – 146.34″
• Inside Columns – 117.32″
• Drive through – 94.06″

Wide Width:

• Overall – 152.24″
• Inside Columns – 123.23″
• Drive through – 99.96″

Shipping dimensions:

Lift 142” x 24’ x 46” 2200lbs
Pump is wrapped on the lift and included in the Lift’s dimensions.
Optional Height Extension Kit 30” x 17” x 17” 180lbs
