LTPO10-SHU 10K 2 Post Overhead Lift - Daytona Automotive Equipment

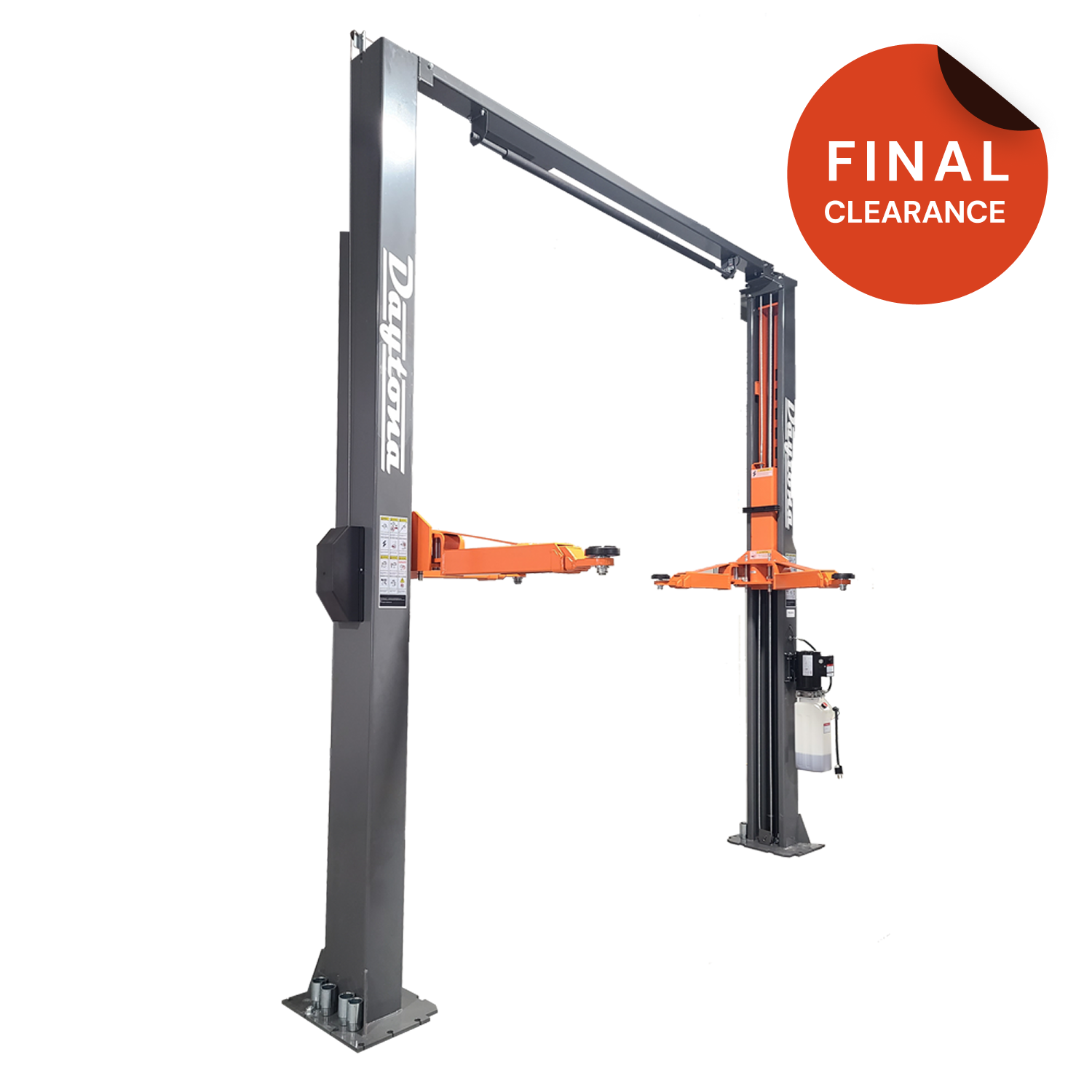

LTPO10-SHU 10K 2 Post Overhead Lift

+ Free Shipping

Specifications:

Capacity – 10,000lbs
Power – 220V, 1Ph, 60Hz
A – Outer width from post base outsides – 142″
B – Inner width from post base insides – 109.5″
C – Clearance under arm at full height – 70″
D – Inner width between posts – 119″
E – Outer width from posts outsides – 133.5″
F- Minimum clearance height of arms in the down position
H – Vehicle Clearance space in-between arms – 105″
J – Post dimensions – 7″ x 11.5″
M – Post Bases dimensions – 16″ x 21″
N – Height including overhead bar to floor – 154″

Category: Clearance Items

Description
Reviews (0)

Note: Limited stock. Call for product availability.

Features

10,000 lb lifting capacity
Automatic safety locks, with single point lock release system
High polymer polyethylene wear resistant slide blocks
Dual cylinders with cable equalization
3-stage screw up pads
Height limit switch
Rubber door guards
Powder coat finish for durability

SCREW UP PADS INCLUDED!
